Bone Roof DFT 80um PRS Beam Steel Structure Warehouse

Bone Roof DFT 80um PRS Beam Steel Structure Warehouse
Bone Roof DFT 80um PRS Beam Steel Structure Warehouse Bone Roof DFT 80um PRS Beam Steel Structure Warehouse

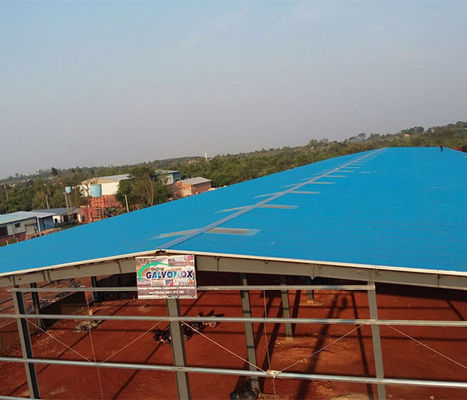

Large Image :  Bone Roof DFT 80um PRS Beam Steel Structure Warehouse

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFAFAB
Certification: ISO
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

Bone Roof DFT 80um PRS Beam Steel Structure Warehouse

Description
Material: PRS Beam Surface Treatment: Alkyd Primer, DFT 80um
Structure: Portal Structure Frame Wall: 0.5mm Steel Corlor Sheet+100mm Glass Wool+0.5mm Steel Corlor Sheet
Roof: Corrugated Color Bone Roof Panel Downpipe: 110mm Diameter
Dimension: 120*60*9M(Length*width*eave Height)
High Light:

PRS Beam Steel Structure Warehouse

,

DFT 80um Steel Structure Warehouse

,

Q235 Steel Structure Warehouse

PRS Beam Corrugated Color Bone Roof Steel Structure Warehouse



Steel structure warehouse introduction



Steel structure warehouse building design and calculation according to customer requirements according to detailed dimensions (length, width and eaves height), local wind speed, snow accumulation, etc., steel structure warehouse building is a new type of structural system, and the steel frame is formed by H-shaped steel columns , H top beam, wall X cross brace, roof brace, Pur strip of wall and roof.



Items Specifications
Main Steel Frame Column Q235,Q345 Welded H Section Steel
Beam Q235,Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z Purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical & Horizontal support Q235 Angle Steel,Round Bar or Steel Pipe
Maintenance System Roof Panel

EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

Corrugated Steel Sheet

Wall Panel

EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

Corrugated Steel Sheet

Accessories Window Aluminum Window, Plastic Steel Window
Door Aluminum Door, Rolling Metal Door
Rainspout PVC
Fastener High Strengh Bolts,Normal Bolts,Chemical Bolts
Ventilation System Natural Ventilator,Ventilation Shutters
Live Load on Roof In 120kg Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-Resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature -50°C~+50°C
Certification CE, SGS,ISO9001:2008,ISO14001:2004
Finishing Options Vast array of colors and textures available



Details of building code for steel structure warehouses


Main structure: Q345B welded H-shaped steel;
Lin strip: C-segment channel or Z-segment channel;
Roof cladding: 0.5mm color coated galvanized sheet
Wall panel: 0.5mm corrugated steel plate;
Tie rod: round steel pipe;
Support: round rod;
Column cross support and roof support: angle steel or steel rod;
Flying support: angle steel;
Wrapping paper: color steel plate;
Gutter: color steel plate;
Rainwater sprinkler: PVC pipe;
Door: aluminum alloy rolling shutter door, sliding sandwich panel door;
Windows: PVC/aluminum alloy windows;
Connection: High-strength bolt 10.9S


The main load-bearing component of a steel structure building is a steel structure, which is a steel structure manufactured in the workshop and delivered to the project site for installation after cutting, welding, and painting. In foreign projects, we use 40ft open container to load the steel structure on the crane. Loading and unloading.



The customer performs the civil work of the foundation. After the foundation bolts are pre-buried, the pre-buried foundation bolts are connected to the foundation, and the high-strength bolts are 10.9s connected to the steel structure, which reduces construction time and labor for on-site welding.



The steel structure warehouse is designed for single span or multiple spans, each span can be up to 36m, without intermediate columns, which expands the internal use space.


There are many options for steel warehouse walls and roofs, corrugated color boards or sandwich panels. The walls and roofs are fixed to Pur strips by self-tapping nails. The windows on the walls can be aluminum or UPVC sliding windows. The doors are usually roller doors or Sandwich panel sliding door.



Bone Roof DFT 80um PRS Beam Steel Structure Warehouse 0



Why choose steel structure warehouse?


Why is steel structure warehouse an ideal building material for many projects? Versatility and durability make it unique.

Steel construction is very suitable for skyscrapers. It can also be used for a series of commercial, agricultural and industrial projects. At the same time, it can be used in almost every stage of the construction process, including frames, floor joists, and roofs. Here are some other benefits that make structural steel an attractive construction choice:



1. Quickly build a steel structure warehouse


Budget and schedule are vital to any steel construction project, and the two are intertwined. The less time you spend on the job site, the less labor costs.

Reliable structural steel companies can help you meet these two challenges because the materials they use are pre-designed. It shows the pre-cut at the job site and is ready for assembly, thus
Eliminates the need for on-site measurement and cutting;
Reduce human error;
Reduce the number of on-site staff required to complete the project;
This allows experienced structural steel companies to complete large projects faster than other construction methods.

Our company has tailor-made services. This service enables customers to clearly understand the cost. Therefore, the customer will not spend extra money, but it is useless. The purpose of customized services is to enable customers to purchase suitable steel structures at a reasonable price.



2. The versatility of steel structure warehouse


Structural steel is a very versatile product. It can be formed into almost any shape. It has high strength and durability, and can be used in projects that require long and clear spans, including:
Indoor stage
Agricultural storage building
warehouse
Aircraft and equipment hangars



3. Steel structure warehouse is lighter than wood


Compared with wood, glulam or other engineered wooden beams, I-beams with the same load-bearing quality are lighter. This is the result of the profile shape of the I-beam and the strength of the steel. Due to its lighter weight, steel can reduce project budgets in the following ways:
Material transportation cost
Simplified design
Less foundation and structural support required



4. Environmental protection


Steel is the most recycled material on the planet. The materials used in your steel structure are likely to come from existing sources. In addition, when the service life of the building reaches the end (to be far in the future), the steel can be salvaged and reused for new projects.

As technology in the steel industry continues to advance, the process used to create this technology requires less energy and less carbon dioxide.

Due to the strict building tolerances of structural steel, buildings have extremely high energy efficiency. Combined with appropriate building design and insulation materials, they can provide a completely sealed building envelope, thereby:•
practical,
Comfortable,
economic



5. Work site safety of steel structure warehouse


In any construction project, workplace safety is always the top priority. Since the steel building materials are prefabricated elsewhere, on-site activities can be simplified to ensure a safe and effective construction process.

Our company has realized the modular production of steel structures. This makes the installation and disassembly of the steel structure very simple and safe.



Steel structure construction price


In addition to quality, many customers also care about the price of steel structures. The price is variable, and it is related to many factors, such as supply and demand in the steel structure market, steel structure manufacturers, steel structure design, transportation, and installation. The specifications of steel structures also affect the price, such as height, width, length, and bearing capacity.

The most reliable way to save costs is to choose a reliable steel structure manufacturer. Professional steel structure suppliers provide qualified steel structures with reasonable design and ex-factory prices. The steel structure of our company has been exported to many countries and regions. The customer was very satisfied with the steel structure and became a regular customer. Do you want to buy cost-effective steel structure? Contact us now!
