Product Details:
|
| Material: | Welded H Beam | Surface Treatment: | Alkyd Primer, DFT 80um |
|---|---|---|---|
| Structure: | Portal Structure Frame | Wall: | EPS 50MM |
| Roof: | EPS 50MM | Downpipe: | 110mm Diameter, PVC |
| Life Time: | 50 Years | Dimension: | 80*60M*80(Length*width*eave Height) |
| Door: | Sliding Door | Window: | PVC |
| Cannopy: | Frame+double Sheet, 3.2m Length | Brick Wall: | 1.2m Height |
| High Light: | 80*60M Steel Structure Warehouse,angle Alu Steel Structure Warehouse,ISO 9001 Stainless Steel Structure Warehouse |
||

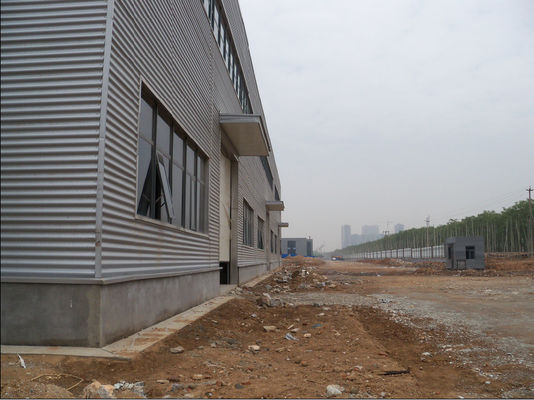

Construction Design Prefabricated Steel Structure Warehouse Shed
Product description
Steel structure building warehouse/workshop is a new type of light steel structure building system. It is formed by the main steel frame composed of H-shaped steel, Z-shaped steel and U-shaped steel. Its roof and walls use various panels and other components such as windows, doors and cranes.
>> Main parts of the steel structures and technical parameters:
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.4mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.8mm color steel plate |
| Rainspout pipes | Φ160 PVC pipe |
Advantage
1. Low maintenance cost
2. Environmental protection and recyclable.
3. Flexibility when fixing doors, windows and indoor partitions
4. The steel structure is firm, durable and stable.
5. Steel parts are resistant to termites and other destructive insects.
6. The service life exceeds 50 years.
7. Fast construction speed, convenient installation and convenient transportation.
We produce various steel structures, light steel villas, container houses, prefab houses, carports, tent houses, fences, etc., which are stable, durable, and beautiful, not only easy to install and disassemble, but also easy to transport and store.
Steel structure warehouses are widely used in factories, residences, office buildings, dormitories, hotels, etc. At the same time, we also provide optional facilities and accessories according to customer requirements, such as steel columns, steel beams, steel purlins, crane beams, internal fixtures and exterior wall decoration.
