Prefabricated Structural Steel Truss Frame Fabrication And Supply

Prefabricated Structural Steel Truss Frame Fabrication And Supply
Prefabricated Structural Steel Truss Frame Fabrication And Supply Prefabricated Structural Steel Truss Frame Fabrication And Supply Prefabricated Structural Steel Truss Frame Fabrication And Supply Prefabricated Structural Steel Truss Frame Fabrication And Supply Prefabricated Structural Steel Truss Frame Fabrication And Supply

Large Image :  Prefabricated Structural Steel Truss Frame Fabrication And Supply

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO9001:2015 , ISO14001:2015
Model Number: KAFA-2021048
Payment & Shipping Terms:
Minimum Order Quantity: 50T
Price: USD 985~1250/T
Packaging Details: In nude or packed on steel pallet
Delivery Time: 30 days after deposit and shop drawing
Supply Ability: 1000 per month

Prefabricated Structural Steel Truss Frame Fabrication And Supply

Description
Material: Welded H Beam, Angle Steel, SHS, RHS Grade: Q355B,Q235B
Design Software: PKPM, CAD, TEKLA Welding: Automatic Submerged-arc Welding
Blasting: Sa 2.5 , St 2.0 Surface Treatment: Epoxy Rich Zinc Primer, DFT 100μm
High Light:

Structural Steel Truss Frame

,

Prefabricated Steel Truss Frame

,

Prefabricated truss portal frame

Prefabricated Steel Structural truss frame fabrication and supply



Prefabricated steel structural truss frame can be used in an industrial, agricultural or commercial building. The steel structure components are all prefabricated in workshop and only require assembled onsite without skilled labor, without affecting the quality and durability. And design allows for strength and sturdiness, protection against earthquakes and wind, and is relatively cheaper when compared to other material building. Steel structure widely applied to different functional buildings. The steel structure truss frame mostly wide used in long span building, with the advange of light weight, high strength, low cost and elegant appearance.



Steel structure adopts Q355B grade of welded H type steel, Q235B grade of steel square tube, as well as C/Z section steel to combine the framework. Roof and wall could apply colour bond steel sheet, sandwich panel, glass curtain wall, as well as aluminum cladding, depending on your different requirement.



Q355B is one of low carbon alloy steel. Welded H section Q355B steel with high strength, stonger buckling resistance performance, can save 10%-15% material, 30%-40% weight of structure in buildings and 15%-20% weight of structure in bridge than hot-rolled H steel. Compared to hot-rolled H steel, the welded H section steel have high-accuracy size performance, and the section dimension can be customized.



>> Steel Structural truss frame VS Portal rigid frame steel structure



Steel structure truss frame Portal rigid frame steel structure
Good appearance Standard type structure
Long service life Same
Low cost for maintenance Re-paint for every 5 years
Cost-effective design for long span  Economical span is 20~25m
Fabrication more diffcult and higher price

Simple and cheap

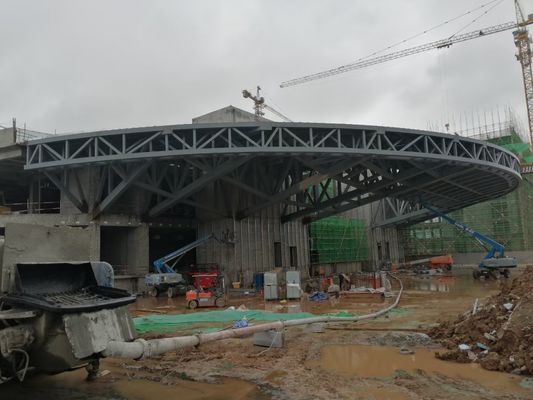

Prefabricated Structural Steel Truss Frame Fabrication And Supply 0 Prefabricated Structural Steel Truss Frame Fabrication And Supply 1



Prefabricated Structural Steel Truss Frame Fabrication And Supply 2 Prefabricated Structural Steel Truss Frame Fabrication And Supply 3



Prefabricated Structural Steel Truss Frame Fabrication And Supply 4



Prefabricated Structural Steel Truss Frame Fabrication And Supply 5Prefabricated Structural Steel Truss Frame Fabrication And Supply 6



>> Characteristics



1. Cost-effective design



2. Epoxy rich zinc primer and  Epoxy mio barrior middle paint, DFT 100um,  Good anti-rust



3. Long using time up to 50 years



4. Stable and earthquake resistance up to 9 grade



5. Fast construction, time saving and labor saving



6. Good appearance



7.  High strength and long span up to 37m
