Large span low cost prefabricated engineering steel frame structure warehouse

Large span low cost prefabricated engineering steel frame structure warehouse
Large span low cost prefabricated engineering steel frame structure warehouse Large span low cost prefabricated engineering steel frame structure warehouse Large span low cost prefabricated engineering steel frame structure warehouse Large span low cost prefabricated engineering steel frame structure warehouse

Large Image :  Large span low cost prefabricated engineering steel frame structure warehouse

Product Details:
Place of Origin: China
Brand Name: KAFAFAB
Certification: BV,SGS
Model Number: Steel warehouse
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: USD 20-80 per square meter
Packaging Details: nude pack or steel pallet
Delivery Time: 4-6 weeks
Supply Ability: 20000 square meter per month

Large span low cost prefabricated engineering steel frame structure warehouse

Description
Material Grade: Q235B Q345B Place Of Origin: Shandong,China
Color: As Per Requirment Surface Treatment: Painting Or Galvanized
Door: Roller Door Or Sliding Door Roof/wall: Sandwich Panel Or Single Sheet
Window: PVC Or Aluminum Alloy Dimension: As Per Requirement
High Light:

structural steel warehouse

,

metal frame warehouse

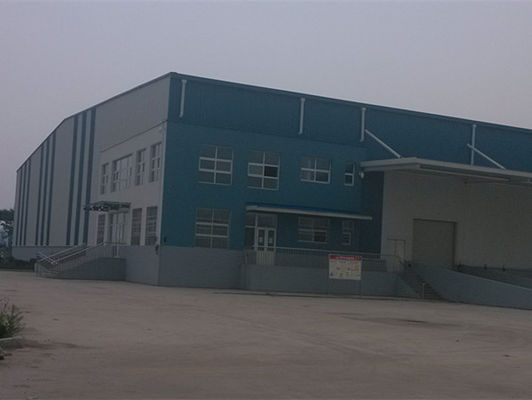

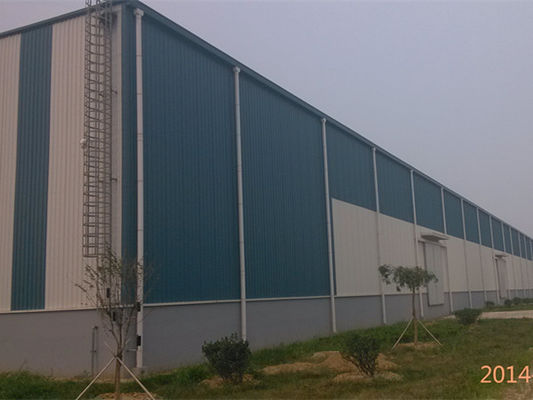

Large span low cost prefabricated engineering steel frame structure warehouse





Large span low cost prefabricated engineering steel frame structure warehouse 0Large span low cost prefabricated engineering steel frame structure warehouse 1





Material



column and beam material q345 H section steel ( painted or galvanized)
wall&roof purlin c or z section steel, size from c120~C320, z100~Z200
wall&roof panel colorful corrugated steel sheet ,sandwich panels with eps, rockwool, fiber glass, pu etc.
supporting steel angle, steel pipe, steel round.
gutter steel sheet or galvanized steel sheet
rainspout pvc pipe
door sliding sandwich panel door or rolling metal door
window pvc or aluminum alloy windows
accessory anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc.





Main Steel Structure
steel pillar H(300-550)x200x6x10, steel Q345
steel beam H(300-550)x180x6x8, H300x180x6x8, steel Q345
Second Steel Structure
Roof purlin C180*75*50*2.5
wall purlin C180*75*50*2.5
cross support Φ20 round steel bar, steel Q235
column bracing Φ20 round steel bar, steel Q235
angle brace L50x4 angle steel, steel Q235
tie bar Φ89*3, steel Q235
roof and wall panel
roof panel 50mm sandwich panel (EPS,PU,Glass wool,Rock wool)
Wall panel 50mm sandwich panel (EPS,PU,Glass wool,Rock wool)
rolling up door auto-matic rolling up door
single wing door sandwich panel door
window Aluminum/PVC slidding window with single glass
edge cover steel sheet (thickness 0.5mm)
fittings glass adhesive, self-tapping screw etc.
Other fittings
embedded M24 steel Q235, process
intensive bolt grade 10.9
ordinary bolt 4.8S



Light steel structure building

Light steel structure is a new type of building structure system.which is formed by the main steel framework linking up H section ,Z section,C section or U section steel components,roof and walls using a variety of panels and other components such as windows,doors,cranes,etc.Light steel structure is widely used vas warehouses,workshops,large factories..etc.



FAQ:

1.You are manufacture factory or trading company?



A: We are manufacture factory. And you are welcomed to visit us for inspection.



2.Is your price competitive with other companies?



A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost.



3.Do you offer service for installation?



A: We will give detailed installation drawings and direction info for free. And we could send engineers as installation director even a team.



4.Do you accept container loading inspection?



A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
