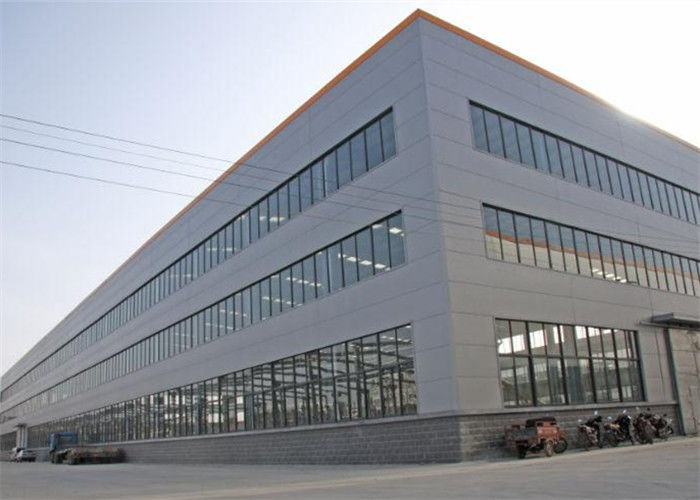

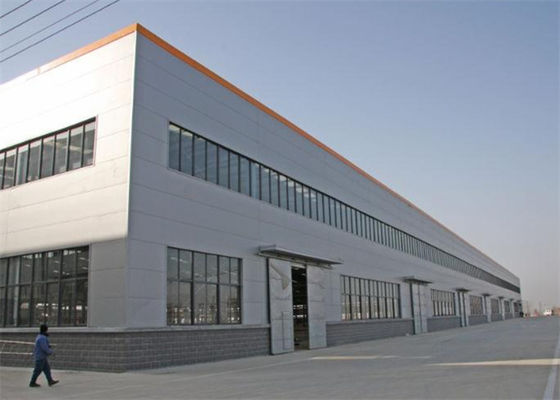

Maersk Heavy Lifting Crane High Live Loading System Steel Structure Workshop

Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop
Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop

Large Image :  Maersk Heavy Lifting Crane High Live Loading System Steel Structure Workshop

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO9000
Model Number: Workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000sqm
Price: 45~65usd/sqm
Packaging Details: In nude or steel pallet
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 40000sqms/month

Maersk Heavy Lifting Crane High Live Loading System Steel Structure Workshop

Description
Material: Welded H Beam, Hot Rolled H Beam, Pipe, Bar, Angle Steell Grade: Q345b Q235b
Door: 6*8m Eletric Automatic Roller Shutter Door Windows: PVC Double Glass
Roof: 0.5mm Corlor Steel Sheet+100 Rock Wool Wall: 0.5mm Corlor Steel Sheet+100 Rock Wool+0.4mm Color Sheet
Crane: 2pcs*20T, 4pcs*5T, 1 Pc *25T Live Loading: 0.8KN/sqm
High Light:

structural steel workshop

,

prefab steel workshop

Maersk Heavy Lifting Crane High Live Loading System Steel Structure Workshop

  • Project name: Maersk  Industrial workshop
  • Dimension: 80*40*13m(length*width*height)
  • Wall:  0.5MM V820 steel corlor sheet
  • Roof: 0.5mm V820 Steel corlor sheet+100mm  glass wool
  • Paint: Alkyd primer, middle grey.  DFT 80um
  • Crane: 2pcs*20T, 4pcs*5T, 1 pc *25T
  • Installation time: 40days
  • Drainage system: Outer&Inner gutter + 110mm downpipe

Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop 0



Goods Name
steel structure workshop
Dimensions
SIZE
Mwidth X length X eave height, roof slope
Width X length X eave height, roof slope
EAVE Height
3 Meter - 30 Meter ( According to customers )
MOQ
MOQ is 300m2
Type
Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors
Specifications
Base
Cement and steel foundation bolts
Material
Q235B, Q345B or others as buyers' requests
Purlin
C PURLIN or Z PURLIN: Size from C120~C300, Z120~Z300
Bracing
X-type or other type bracing made from angle, round pipe, etc
Surface
Two lays of Anti-rust Painting or Hot Dip Galvanized
Bolt
Plain bolt and High-strength bolt
Roof &wall
Single color corrugated steel sheet 0.326~0.8mm thick, or sandwich panel with EPS, ROCK WOOL, PU etc insulation, thickness around 50mm~100mm, or as buyers' requests
Door
Sandwich panel sliding door, rolling door or as buyers' requests
Window
Aluminium alloy window, PVC window
Accessories
Roof ventilators, Gutter, Rain-spout, Saddles buckle, Waterproof plug, Sealant etc.
Advantages
1. Lower cost but beautiful outlook
2. High safety performance.
3. Easy to assemble and dismantle
4. Manufacture under complete quality control system---ISO9001
5. Installation with instruction of experienced engineers
6. Non-pollution
Usages
1. workshop, warehouse, plant , garage
2. Steel structure frame
3. Multi-story building or high rise building project
4. Portal frame products
5. Structure for smelting and chemical equipment
6. Others steel structure buildings


Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop 1Maersk Heavy Lifting Crane High Live Loading  System Steel Structure Workshop 2
