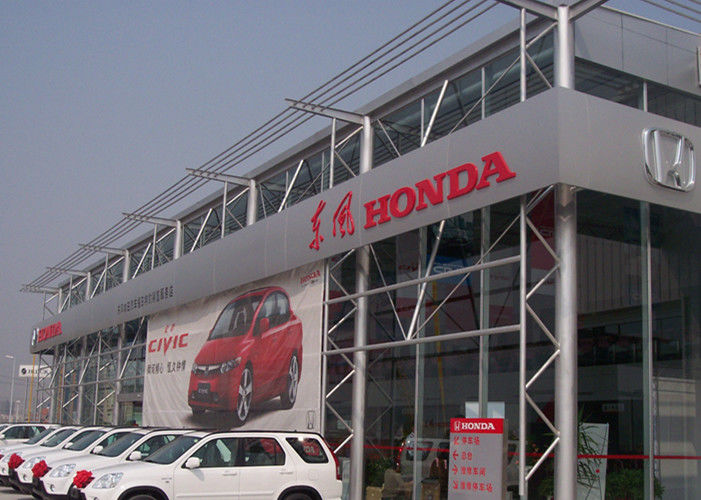

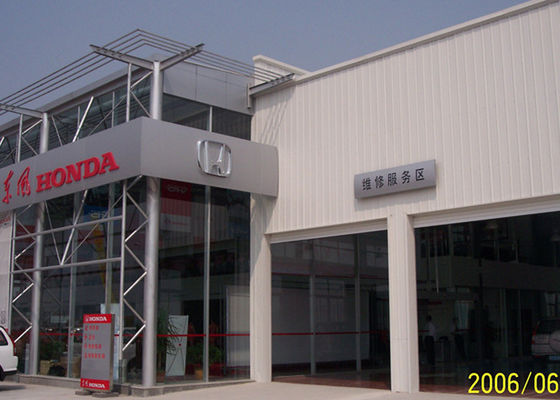

Honda Economic nice appearance fast installation prefab car showroom structure warehouse

Honda Economic nice appearance fast installation prefab car showroom structure warehouse
Honda Economic nice appearance fast installation prefab car showroom structure warehouse Honda Economic nice appearance fast installation prefab car showroom structure warehouse

Large Image :  Honda Economic nice appearance fast installation prefab car showroom structure warehouse

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFAFAB
Certification: ISO
Model Number: Steel structure car showroom
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: Negotiate
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

Honda Economic nice appearance fast installation prefab car showroom structure warehouse

Description
Material: Welded H Beam, Hot Rolled H Beam, C/Z Purlin Surface Treatment: Paint Or Galvanized
Wall: Steel Color Sheet Or Sandwich Panel Roof: Steel Color Sheet Or Sandwich Panel
Life Time: 50 Years Dimension: As Your Requirment
Door: Sliding Door Or Roller Door Window: Aluminum Alloy Window/ PVC
Color: As Per Requirement Place Of Origin: Shandong,China
High Light:

structural steel workshop

,

prefab steel workshop

Honda Economic nice appearance fast installation prefab car showroom structure warehouse



Honda Economic nice appearance fast installation prefab car showroom structure warehouse 0Honda Economic nice appearance fast installation prefab car showroom structure warehouse 1







Product Description




Name Steel structure workshop/warehouse
Dimension Length H beam:400-1500mm
Thickness

web plate: 6-32mm

wing plate: 6-40mm

Height 200-1200mm
color according to customers
size MOQ is300m2,wideth*length*eave height
Advantage

1. low cost but beautiful out look

2. high savety performance

3. easy to assemble and dismantle

4.manufacture under under complete quality control system ISO9001

5. Installation with instruction of experiance engineers.

6. Non-pollution

Main

components

base cement and steel foundation bolts
Main frame H beam
Material Q235B, Q345B or others as customer's request
Purlin C or Z purlin,size from C120-C320,Z100-Z20
bracing X-type or other type bracing made from angle,round pipe.
bolt plain bolt and high strength bolt
Roof&wall sandwich panel and color plate
door sliding or rolling door
Window Aluminium alloy window
surface two ways of anti-rust painting or hot dip galvanized
components sheet 0.5mm or 0.6mm galvanized sheet
Accessories semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.
Usages

1.worshop,warehouse,plants.

2. steel web frame structure

3. steel H-colum and sheet H-beam

4. Portal frame products

5. high rise building project

6. other steel structure buildings.

Packing Main sheet frame without packing load in 40'OT
Drawing according to drawings or according to customer's requirements.
Design

If you need design for you, please supply us the following phareters and other detailed size:

1) length,wideth,height,eave height,roof pitch etc.

2) wind load,snow load,raining condition,aseismatic requirments,etc.

3) demand for doors and windows.

4) other information if necessory





Building Parameter:

structure Steel welded h section
Purlin C section channel or z section channel
Roof cladding Sandwich panel or corrugated steel sheet with fiber glass wool coil
Wall cladding Sandwich panel or corrugated steel sheet
Tie rod Circular steel tube
Brace Round bar
Column & transverse brace Angle steel or h section steel or steel pipe
Knee brace Angle steel
Roof gutter Color steel sheet
Rainspout PVC pipe
Door Sliding sandwich panel door or metal door
Windows PVC/plastic steel/aluminum alloy window
Connecting High strength bolts
Packing Decided by you , loaded into 1X 40FT gp/ot ,1X20 FT gp,1X40 FT hq
Drawing We can make the design and quotation according to your require or your drawing



pecifications



Main Grade: Q345B,Q235B



Steel structure design common norms are as follows:

"Steel Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-9)

Commonly used steel grades and performance of steel

Carbon structural steel: Q195, Q215, Q235, Q255, Q275, etc.

High-strength low-alloy structural steel

Quality carbon structural steel and alloy structural steel

Special purpose steel



Specifications:



Main Steel: Column and beam(H-section), square steel tube,C/Z purlin



Conection Method: Welding or hot rolled or cold rolled



Wall&Roof: EPS,Rockwool,PU sandwichpanel, Corrugated steel sheet with fiber glasswool



Door: Rolled up door or Sliding door(sandwich panel)



Window: Plastic steel or Aluminum alloy window



Surface: Hot dip galvanized or painted. PE primer painted or Epoxy zinc rich primer paint

(all colours we can do)



Crane: 5T,10T,15T,ect.



Bolt: Foundation bolt(M24,Q235),



High strengthen bolt(M20X70) ,



Normal bolts(M16x50;M12X30)





Drawings&Quation:



1.Customized design to welcome.



2.As long as you like, we can design and provide drawings for you.



3.In order to give yo an exactly quotation and drawings,pls tell us the ;Length,width,eave height and local weather. we'll quote for you asap.





Tems:



Payment : L/C or by T/T(30% prepaid as depsit, the balance 70% against copy of B/L )



Delivery time : within 45 days, According to customers's order



Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk





Project scope:



Industrial steel structure warehouse/workshop/hangar/garage/chicken shed,container house, prefabricated home,sandwich panel, welded H steel,C/Z channel,corrugated steel sheet,etc.



*Products&Service Scope:



Design&Engineering Service, Steel Building,Space Frames, Portable Cabins, Tubular Steel Structures,basic building elements(built-up welded H-section , hot-rolled H-section, channel, steel column, steel beam),standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels



* Engineering Design Software:



AutoCAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc



* Certificate:



ISO9001:2000 ; ISO14001:2004 BV certificate



Connection Method

The columns are connected with the foundation by pre-embedding anchor bolt

The beams and columns, beams and beams are connected with high intensity bolts



Construction Advantage

  • Could be designed according to different purpose and environment condition
  • Long life span, could be more than 50 years
  • Quick and easy install work and the more economic friendly
  • Could be moved and recycle
  • Strong seismic and wind resistance





Installation:



There are 3 options of installation as following:

1. Clients install it by themselves according our drawings and simple video.

2. Our engineer to help on construction site.

3. We provide installation team to help.
