Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment

Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment
Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment

Large Image :  Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFAFAB
Certification: ISO
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: 60~80usd/sqm
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment

Description
Material: Welded H Beam, Crane Beam, Purlin, Surface Treatment: Alkyd Primer
Structure: Portal Structure Frame Wall: 0.5mm Steel Corlor Sheet+100mm Glass Wool+0.5mm Steel Corlor Sheet
Roof: EPS 75MM Downpipe: 110mm Diameter, PVC
Life Time: 50 Years Dimension: 116*65*14m
Door: Sliding Door Window: Aluminum Windows
High Light:

steel building workshop

,

structural steel workshop

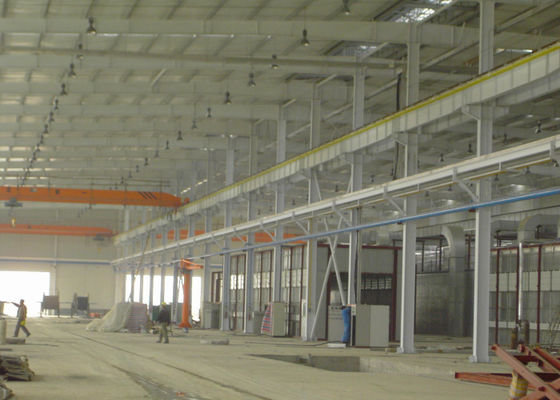

Pre-engineered customized prefabricated steel structure building workshop



Project site: Ethiopia

Dimension: 116*65*14m( length*width* eave height)

Total weight: 232Tons

Total value:456,000usd

Fabrication time: 6weeks

Crane:   4*5tons, 2*20 tons





Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment 0





Product Description


Product Application

Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.

Heavy Steel Structure Workshop Construction With Alkyd Primer Surface Treatment 1
SPECIFICATIONS FOR STEEL STRUCTURE BUILDING

Item
Material
Description and surface process

Main steel frame
Column and Beam
Q235 or Q345
H section steel with two coats of mid-gray paint
Purlin
Q235 or Q345
Galvanizd C or Z type steel



Connecting

Pieces
Tie tube
Q235
Circular Tube with two coats of mid-gray paint
Knee-Bracing
Q235
L50*4 Galvanizd angle steel
Strutting piece
Q235
φ89*2.5 Galvanizd Circular Tube
Column Bracing
Q235
Circular Tube with two coats of mid-gray paint
Horizontal Bracing
Q235
Circular Tube with two coats of mid-gray paint
Casing
Q235
φ30*2.5 Galvanized Circular Tube


Door and Window
Item
Description
Door
Roller shutter door or Sliding door
Window
PVC Window or aluminum alloy window



Other parts
Ventilating device
Fan,Ventilation window
Bolt
Foundation bolt,High strengthen bolt, Normal bolts
Skylight
Yx-840 Glass Fiber Reinforced Plastics
Out/Inner ridge tile
0.50mm Color sheet
Crane beam
Q235 or Q345 H section steel with two coats of mid-gray paint

Main Features

1)Enviromental friendly
2) Lower cost and maintenance
3) Long using time up to 50 years
4) Stable and earthquake resistance up to 9 grade
5) Fast construction, time saving and labor saving
6) Good appearance
