Steel truss girder high strength loading steel structure contruction

Steel truss girder high strength loading steel structure contruction

    • Steel truss girder high strength  loading steel structure contruction
    • Steel truss girder high strength  loading steel structure contruction
  • Steel truss girder high strength  loading steel structure contruction

    Product Details:

    Place of Origin: China
    Brand Name: KAFAFAB
    Certification: BV,SGS
    Model Number: Steel structure

    Payment & Shipping Terms:

    Minimum Order Quantity: 20T
    Price: 900~1200usd/T
    Packaging Details: Nude pack or steel pallet
    Delivery Time: 6 weeks
    Supply Ability: 2000T/MONTH
    Contact Now
    Detailed Product Description
    Material: Welded H Beam, Angle Steel Round Bar,pipe, SHS, RHS Paint: Epoxy Rich Zinc Primer, Epoxy Mio Barrior Middle Paint.
    Structure: Truss Frame Application: Workshop
    Corlor: Grey Dimension: 85*40*10m(length*width*height)
    Grade: Q235B Q345B Purlin: G450 Cold Rolled Galvanized C Purlin

    Steel truss girder high strength loading steel structure contruction

    • Content:steel frame
    • Dimension: 85*40*10m(length*width*height)
    • Quantity:98 Tons
    • Total value: 118,000usd

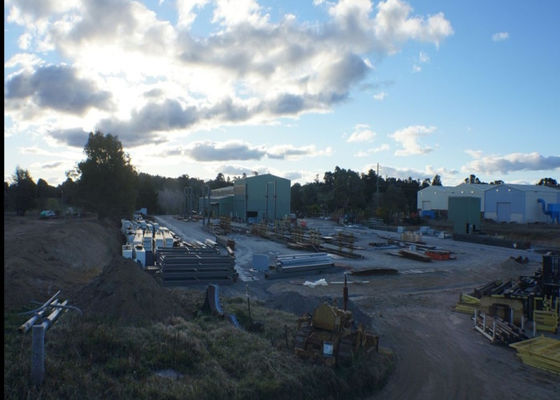

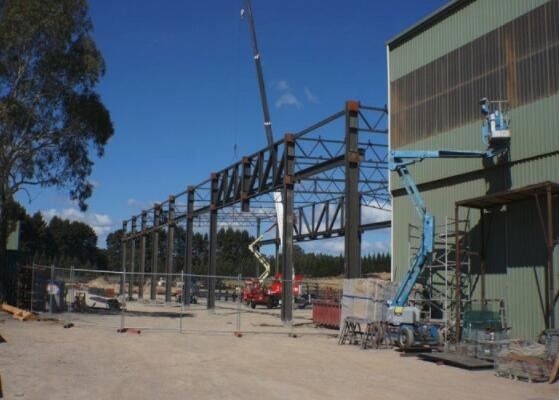

    • Description: This project come from a australian steel structure manufacturer. their quality requests is very high. Total workshop area is 3500 sqms, Removing column is the unique feature. You see there many removing columns, This is design not make the trimming joist (chinese standard). But make the central big truss to make all the workshop as a whole.



    During processing period: All the raw material have checked by third party, and also certificate will be neccessary. Tension and strength testing in-house ( we are the only one have this testing machine In Qingdao). All Hand action during cutting will not be allowed,



    Before welding: All the welding machine will be checked, and gas must be sufficient to avoid welding line have porosity/ Crators / Cracks . Current will be enough to avoid the welding line not smooth.



    Blasting: we make the blasting as 2.0 grade ( australian standard). To ensure there will not rust before painting.





    Paint: within 2 hours mustbe painted to gurantee the blasting quality. this project we use EPOXY ZINC RICH PRIMER, TWICE PAINT 80 um. After primer paint, we make Epoxy Mio Barrior Paint 40 paint, that paint will ensure all the components will be not rust during long time shipment on the sea.



    Inspection: We make the Ultrasonic Testing In-house, Take record and make report in-house. After we check the components that will be ok. then we ask clients' Inspector come to our factory to check if the quality will be good to loading.



    Steel truss girder high strength  loading steel structure contruction





    Advantages



    1. Stable structure: Safe and reliable light steel structure system.



    2. Attractive looks: Colorful corrugated galvanized steel sheet or sandwich panel as wall & roof panel.



    3. Easy & quick to install: Repeated use, simple tools for installation.



    4. Economical: Compared with concrete buildings, it costs much less.



    5. Long life span: The steel structure frame coated with anti-corrosive painting could stand more than 20 years in good maintenance.



    6. Environmental friendly: Professional design, easy installation, recyclable use.



    7. Extensive application: Construction site, office building, industrial workshop,warehouse,exhibition center,etc.





    Export Market Distribution:

    Market Revenue(Previous Year) Total Revenue (%)
    South America confidential 0.5
    Southeast Asia confidential 12.0
    Africa confidential 25.0
    Oceania confidential 0.2
    Mid East confidential 5.0
    Eastern Asia confidential 5.0
    Northern Europe confidential 1.0
    South Asia confidential 2.3
    Domestic Market confidential 49.0

    Production Machinery:

    Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
    Heat insulation sandwich plate machine Jing tong 1 3.0 Acceptable
    C type steel machine C-306 1 3.0 Acceptable
    Punching machine J23-35 2 4.0 Acceptable
    Cutting machine Jiashida 1 4.0 Acceptable
    Hydraulic Bending machine Jiashida 3 3.0 Acceptable
    Radial drilling machine Z3032X10 1 4.0 Acceptable
    Lift Crane No information 3 4.0 Acceptable
    Light steel keel machine XHH-C89 1 2.0 Acceptable
