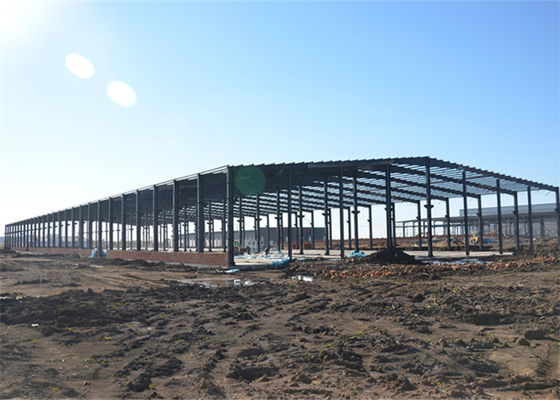

Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building

Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building
Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building

Large Image :  Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building

Product Details:
Place of Origin: China
Brand Name: KAFAFAB
Certification: BV,SGS
Model Number: Steel structure
Payment & Shipping Terms:
Minimum Order Quantity: 30 Metric Ton
Price: Negotiate
Packaging Details: Nude pack or steel pallet
Delivery Time: 4-6 weeks
Supply Ability: 1000 Tons per Month

Thermal Insulation Structural Steel Warehouse , Fireproof Metal Workshop Building

Description
Material: Hot Rolled/weld H Beam, Pipe Paint: Epoxy Rich Zinc Primer DFT 90um
Structure: Steel Structure Blasting: SA2.5
Color: As Per Requirement Servise Life: 50 Year
Grade: Q345B Q235B Earthquake Resistant: 8.0 Grade
High Light:

prefabricated steel construction

,

structural steel frame construction

Good thermal insulation and fireproof performance steel structure construction workshop/warehouse









Product name Steel structure for construction building
Material Mild steel,stainless steel,aluminum,brass
Grade SS400,S235JR,A36,Q235B Q345B Q460 45# 304 316
Standard ISO,GB,JIS,ASTM,ANSI,AISI,DIN,BS
Weight 10kgs-20,000kgs
Manufacturing processes

Material inspection, material cutting, deburring, bending, assembling, welding,

polishing/cleaning, shot blasting, machining, painting, packing, delivery.

Heat treatment Normalization,annealing,quenching and tempering(45#)
Packing Iron pallets/racks, or as per customer's requirements.
Inspection 100% dimension inspection and visual inspection,,gas tight test before delivery.
Non-destructive testing PT (penetrating testing), MT (magnetic particle testing), UT (ultrasonic testing), RT (radio- graphic testing).
Software Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Certificates SO9001:2008,DNV,GL,LR,ABC,BV,NK,KR,CCS.
Application

Various sizes of vessles,Power stations, power plants, large generators,liftfork,material

handling equipment.







Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.4mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe





FAQ:

1)Is your company a factory or trade company?
We are factory, so you can get the best price and competitive price.



2)What’s the quality assurance you provided and how do you control quality ?
Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.



3) Do you offer guiding installation on site overseas for warehouse building?
Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas. They have succeeded in many countries, such as Iraq, Dubai, South Africa, Algeria, and Ghana.



4) What is your main market?
Guided by global field of vision, our products have been exported to many countries and regions with its good quality and good service, such as France, UAE, South East Asia, Africa and so on. We will be glad to establish sincere business cooperation with you in the near future.


5) How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
