Portal Steel Frame Warehouse Construction Big Wind Load

Portal Steel Frame Warehouse Construction Big Wind Load

Portal Steel Frame Warehouse Construction Big Wind Load

Product Details:

Place of Origin: Qingdao China
Brand Name: KAFA
Certification: ISO 9001/2016
Model Number: KAFA WH-009

Payment & Shipping Terms:

Minimum Order Quantity: 1000sqms
Packaging Details: In Nude
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 10000sqm/month
Contact Now
Detailed Product Description
Material: H Beam, Steel Plate Round Bar Etc. Roof: Colorbond Metal Sheet 0.5mm
Wall: Colorbond Metal Sheet 0.5mm Windows: Aluminum Alloy
Door: Composite 75mm Sliding Door Steel Grade: Q345B&Q235B
Crane: No Anti-rusting: Alkyd Primer, Top Coat. DFT 75um
Wind Load: 280km/h Eaqual To 3.8kn/m2 Eaquake Reisitant: 8 Grade
High Light:

structural steel warehouse

,

metal frame warehouse

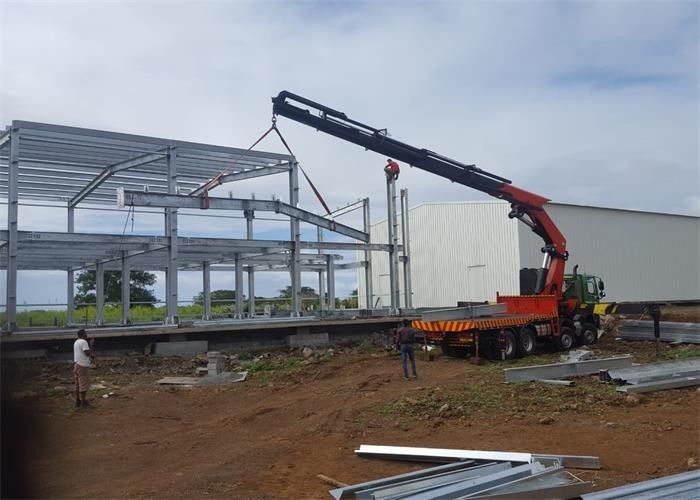

Economical design big wind load steel warehouse in Mauritius


/

Main PartsItem NameSpecification
Main Steel FrameColumn

Q235B, Q345B
H shape, Box, Steel pipe, Hot rolled steel

Beam

Q235B, Q345B
H-beam

FinishShot blasting Sa 2.5, Zinc Rich Epoxy primer finish 100um
Supporting SystemBrace

Q235B, Q345B ,
Steel rod, Steel pipe, Angle steel. Galvanization 275g/m2

Roof PurlinC or Z shape, Steel purlin
Wall Purlin

Q235B, Q346B
C or Z shape, Steel purlin

Roof

0.45/0.5/0.6mm corrugate steel sheet (Aluminum & Zinc coated AZ100g/m2+surface painting 20/5um)
50/75/100mm EPS, Rock wool, PU, Glass wool sandwich panel

Wall

0.45/0.5/0.6mm corrugate steel sheet (Aluminum & Zinc coated AZ100g/m2+surface painting 20/5um)
50/75/100mm EPS, Rock wool, PU, Glass wool sandwich panel

AccessoriesBoltsOrdinary, High strength
Gutter

Galvanized Steel, Stainless steel




Portal Steel Frame Warehouse Construction Big Wind Load

1. Common type of the industrial building?
Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other
types also could be designed and manufacturer as per clients’ request.

2. What’s the quality grade of the steel structure components?
Reply: Q345 is used for main steel structure, Q235 is used for secondary steel structure.

3. How about the delivery time?
Reply: Usually,within 45-60 days after the order confirmed, also depends on the fabrication
quantity.

4. How about the derust grade?
Reply: Ball blasting Sa 2.5 on main steel structure ;
manual derust St2.0 on secondary steel structure.

5. What kind panel used for the roof and wall?
Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel
performs well on the heat insulation,sound insulation.Common sandwich materials are EPS,
glass wool and PU.

6. How to install it?
Reply: We will furnish you the detailed construction drawing and the construction manual
which could help you to erect and install the building step by step. We also could send the
engineer to your local to help you if needed.

7. Maintenance:
Reply: Finish paint need be done after the frame installed, and do it again after 6-8 months.
So the surface will stay more time.
