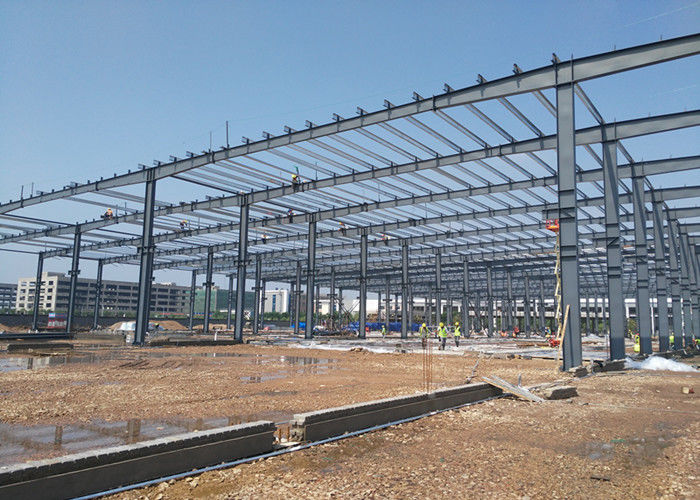

Anti Seismic 8.0 G550 Prefab Steel Structure Construction

Certification
China Qingdao KaFa Fabrication Co., Ltd. certification
China Qingdao KaFa Fabrication Co., Ltd. certification
Customer Reviews
KAFA is a professional steel fabricator,The quality could match Aus standard. Good service.

—— Jonathon Dunlop

KAFA's engineer team is very great. Economical design and cost-effective plan helps us save much money. Thank you KAFA team!

—— Stephane

We cooperated with KAFA for more than 4 years, Good price, high quality, and most important is the on time delivery time. Especially the shop drawings drafting service, They can use Chinese material instead of Australian material properly.

—— James

I'm Online Chat Now

Anti Seismic 8.0 G550 Prefab Steel Structure Construction

Anti Seismic 8.0 G550 Prefab Steel Structure Construction
Anti Seismic 8.0 G550 Prefab Steel Structure Construction Anti Seismic 8.0 G550 Prefab Steel Structure Construction

Large Image :  Anti Seismic 8.0 G550 Prefab Steel Structure Construction

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO 9001
Model Number: Steel structure construction
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: Negotiate
Packaging Details: Nude pack
Delivery Time: 40days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 square meter/month

Anti Seismic 8.0 G550 Prefab Steel Structure Construction

Description
Material: Weld/hot Rolled H Beam Grade: Q235B,Q345B,G550
Type: Light Place Of Origin: Shandong,China(mainland)
Design: As Customer's Request Anti-seismic: 8.0
Surface: Painting Or Galvanized Wall/roof: Sandwich Panel Or Color Steel Sheet
High Light:

G550 Prefab Steel Structure Construction

,

Anti Seismic 8.0 Steel Structure

,

Prefab Steel Car Showroom

Steel structure building steel structure warehouse prefab steel car showroom



Advantages of steel structure building:

1. Durable

2. Light weight

3. Excellent quality

4. Beautiful

5. Easy and quick installation

6. Resistance to 8-9 magnitude earthquake

7. Life: more than 50 years

8. Environmental protection materials: can be used many times and can be recycled



Name Steel structure
Dimension Length H beam:400-1500mm
Thickness

web plate: 6-32mm

wing plate: 6-40mm

Height 200-1200mm
color according to customers
size MOQ is300m2,wideth*length*eave height
Advantage

1. low cost but beautiful out look

2. high savety performance

3. easy to assemble and dismantle

4.manufacture under under complete quality control system ISO9001

5. Installation with instruction of experiance engineers.

6. Non-pollution

Main

components

base cement and steel foundation bolts
Main frame H beam
Material Q235B, Q345B or others as customer's request
Purlin C or Z purlin,size from C120-C320,Z100-Z20
bracing X-type or other type bracing made from angle,round pipe.
bolt plain bolt and high strength bolt
Roof&wall sandwich panel and color plate
door sliding or rolling door
Window Aluminium alloy window
surface two ways of anti-rust painting or hot dip galvanized
components sheet 0.5mm or 0.6mm galvanized sheet
Accessories semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.
Usages

1.worshop,warehouse,plants.

2. steel web frame structure

3. steel H-colum and sheet H-beam

4. Portal frame products

5. high rise building project

6. other steel structure buildings.

Packing Main sheet frame without packing load in 40'OT
Drawing according to drawings or according to customer's requirements.
Design pharameters

If you need design for you, please supply us the following phareters and other detailed size:

1) length,wideth,height,eave height,roof pitch etc.

2) wind load,snow load,raining condition,aseismatic requirments,etc.

3) demand for doors and windows.

4) other information if necessory





Steel structure advantages:



1. Environmental friendly


2. Low cost and maintenance


3. Long using time up to 50 years


4. Stable and earthquake resistance up to 9 grade


5. Fast construction, time saving and labor saving


6. Good appearance


7. Easy assembly and disassembly several times without damage



Why us ?



Quality control system


· Purchase material from famous steel manufacturer, supply traceable mill certificate.
· Before we use the material, we will make a third-party inspection,
· During fabricating, we have 5 QC to inspect every piece member.
· Before we load the steel into the container, we will arrange all the managers to check the steel member.
· Project Supervisor from customer will be welcomed during our fabrication.
· Pre-assembly will be available to check the quality and connection.


Technology service


Help customer to replace the foreign material by chinese material , Modify the shop drawings by chinese material ( but need your qualified engineer check and confirm)
· Modify and optimise shop drawings to save time and money.
· Help you quote your project by free
· Answer your other technology questiones


Loading management


· Before loading we will arrange all the managers to check the goods ( quality and quantity).
· We will make the loading container list before our loading
· We have one manager to check the quantity during our loading containers
· Tie up all the member in case the damage during the sea transportation



· After loading containers, Every steel member ( serial no. from your drawings) will be marked in the loading container list, then we will send to you, you could check the container list to find every member.



Anti Seismic 8.0 G550 Prefab Steel Structure Construction 0

Anti Seismic 8.0 G550 Prefab Steel Structure Construction 1



Our equipment :



Anti Seismic 8.0 G550 Prefab Steel Structure Construction 2



What we can do for you ?



1  Supply you the high quality steel structure products with competitive price.



2  We can design as your detailed requests to ensure our product is only the best for you.



3  If you have drawings, we could help you modify and optimise it. that will make your design is cost- effective design. make it easy installation and save the material. also need to meet your requests. (that is our unique advantage)



4  We could supply the installation service. we can send our engineers to help you install the steel structure. and if neccessary we also could send workers to install it, but i do not think that is a good idea to make it cost-effective. O(∩_∩)O



5  Make the tolerance of weight within 6%, (between construction drawings and actual weight).



Quality control



QC/Technical Support


Raw material quality control


Thickness tolerance <0.25mm


Yield and tension strength testing in-house


Third party inspection certificate


Supply traceable mill certificate

Structural steel fabrication quality control


100% testing dimension tolerance <1mm


20% sample welding line ultrasonic testing, no fault, full penetration.


20% magnetic powder testing, no bubble, no defect, Smooth and Full


Supply third-party inspection assistance.

Shot blasting and painting quality control


Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um


Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM

Pre-assembly testing the connection details.



Anti Seismic 8.0 G550 Prefab Steel Structure Construction 3





Our customer



Anti Seismic 8.0 G550 Prefab Steel Structure Construction 4



Loading



Anti Seismic 8.0 G550 Prefab Steel Structure Construction 5



At currently we have three types loading plan as below:



1 We use 4O"HQ container, This way we loading and unloading is very slow and diffcult. But this way is the lowest cost.



2 We use 40" OT container, we can load all members easily. and good way to protect the possible damage during shipping. But that will cost more ocea freight.



3 We still use 40" HQ, but we could make a steel pallet to put all members on it. And then we push it into the container, this way is the fastest way to loading and unloading, and we can make the pakage to project any damage during shipping. But the steel pallet will cost about 1800 usd per pc.
