Product Details:
|
| Material: | Welded H Beam | Surface Treatment: | Alkyd Primer, DFT 80um |
|---|---|---|---|
| Structure: | Portal Structure Frame | Wall: | EPS 50MM |
| Roof: | EPS 50MM | Downpipe: | 110mm Diameter, PVC |
| Life Time: | 50 Years | Dimension: | 80*60M*80(Length*width*eave Height) |
| Door: | Sliding Door | Window: | PVC |
| Cannopy: | Frame+double Sheet, 3.2m Length | Brick Wall: | 1.2m Height |
| High Light: | XZ160*60*20*2.5 Prefabricated Warehouse Buildings,H Shaped Prefabricated Warehouse Buildings,Grade 10.9 Modern Steel Construction |
||
Prefabricated industrial scaffolding prefab warehouse for sale
Product description

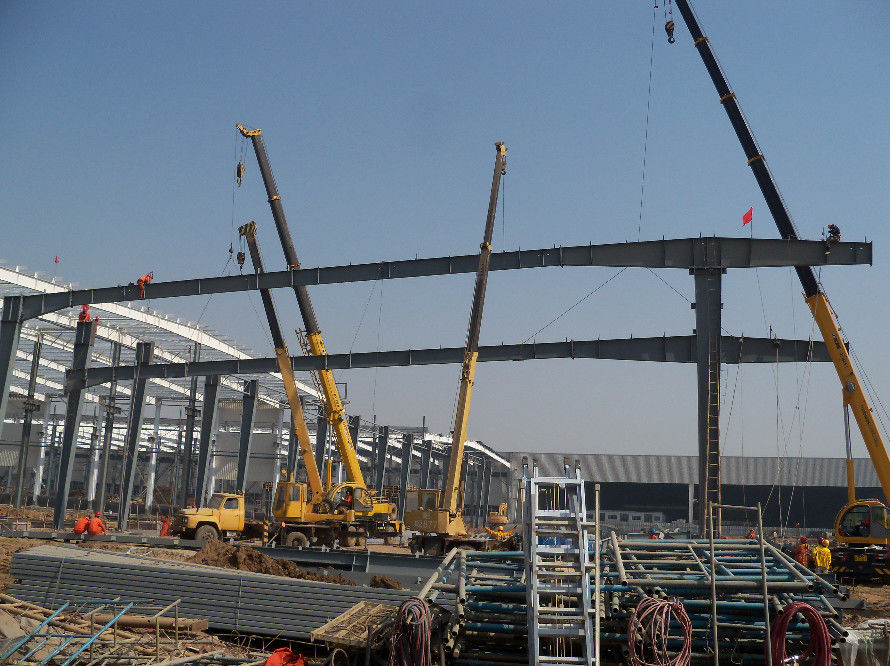

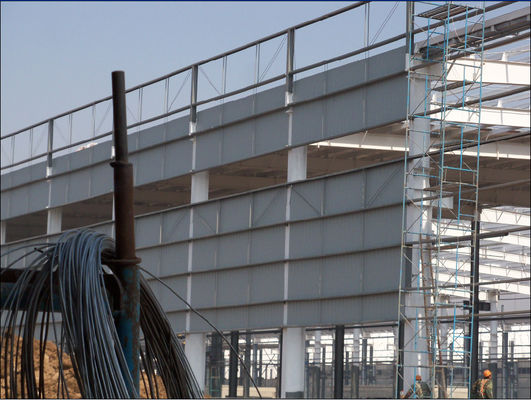

As a new type of building system, steel structure is widely used in workshops, warehouses, farms, villas, showrooms, especially houses. The steel structure is formed by the main steel frame composed of H-shaped steel, Z-shaped steel and U-shaped steel, roof and walls, various panels and other components (such as doors and windows). The biggest advantage is that it saves construction costs and time, while providing you with a comfortable room.
In addition to steel structure buildings, we can also design and produce non-standard steel materials according to customer requirements. For example, prefabricated steel, steel fence, steel frame, steel grating, steel bar, steel stairs, steel ladder, steel platform, steel box, steel lug, steel ring, steel formwork, safety steel fence, airport steel fence, etc.
>> Main parts of the steel structures and technical parameters:
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.4mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.8mm color steel plate |
| Rainspout pipes | Φ160 PVC pipe |
Features
1. Environmental protection
2. Reduce costs and maintenance
3. The service life is up to 50 years
4. Stable, earthquake resistance up to 9
5. Fast construction, saving time and effort
6. Good appearance
Use
Steel workshop warehouse buildings are widely used in workshops, warehouses, office buildings, steel sheds, aircraft hangars, etc.
