Customizable Designed Portal Frame Prefab Warehouse Building Construction

Customizable Designed Portal Frame Prefab Warehouse Building Construction
Customizable Designed Portal Frame Prefab Warehouse Building Construction Customizable Designed Portal Frame Prefab Warehouse Building Construction Customizable Designed Portal Frame Prefab Warehouse Building Construction Customizable Designed Portal Frame Prefab Warehouse Building Construction

Large Image :  Customizable Designed Portal Frame Prefab Warehouse Building Construction

Product Details:
Place of Origin: Shandong, China
Brand Name: KAFA
Certification: ISO 9001:2015; ISO14001:2015; ISO45001:2018
Model Number: KAFA-2021014
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: USD45~90 per square meter
Packaging Details: In nude or packed on steel pallet and loaded into 40' HQ/OT
Delivery Time: 6 weeks after shop drawing approval
Payment Terms: T/T, L/C
Supply Ability: 15,000 square meter per month

Customizable Designed Portal Frame Prefab Warehouse Building Construction

Description
Application: Steel Warehouse, Storage Type: Light,Heavy,steel Structure
Standard: GB Standard Material: Q355B/Q235B, Steel
Purlin: C/Z Section Galvanized Steel(Q235) Color: Optional
Surface Treatment: Hot Dip Galvanised,two Primer And One Top Paint, DFT 70μm Door: Sliding Door/Rolling Door/Sectional Door/Swing Door
Window: Aluminum Alloy Or Plastic Steel Dimensions: Customers' Requirement
Drawing Design: AutoCAD,PKPM,Tekla Structure Service Life: 50 Years
Roofing: Sandwich Panel, Single Steel Sheet
High Light:

Portal Frame Prefab Warehouse Building

,

Customizable Prefab Warehouse Building

,

Customizable prefabricated warehouse building



Regardless of the size, KAFA building systems are perfect for steel warehouses, distribution centers, and online fulfillment centers.



KAFA prefabricated buildings offer benefits for the warehousing industry which are unavailable with other types of construction.

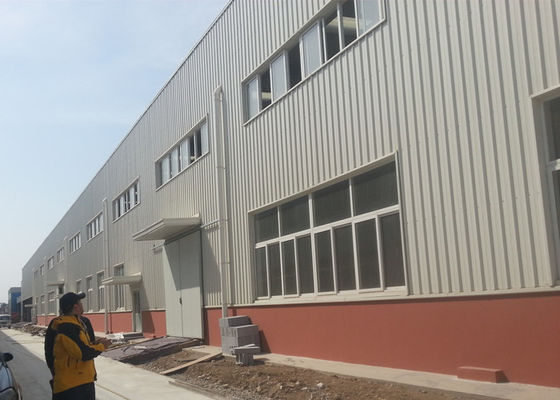

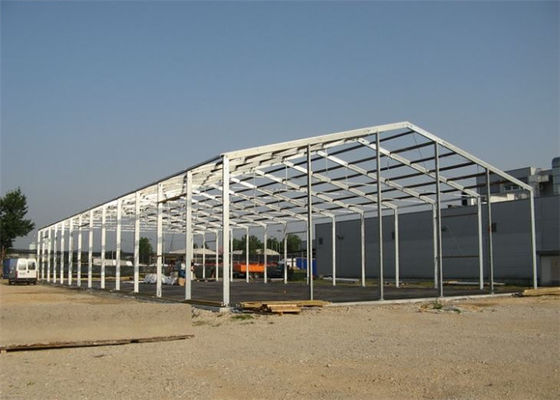

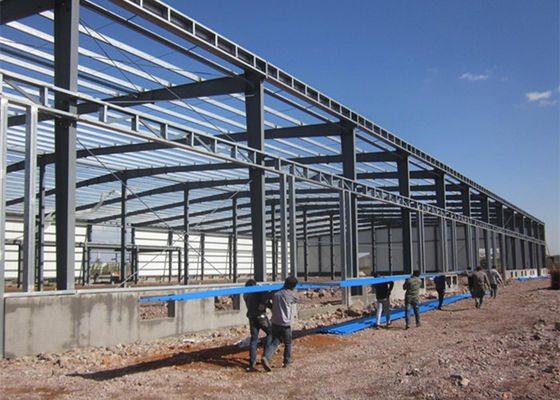

Customizable Designed Portal Frame Prefab Warehouse Building Construction 0   Customizable Designed Portal Frame Prefab Warehouse Building Construction 1



KAFA Steel Warehouses Erect Quickly



KAFA’s prefabricated building system can save construction time by one-third compared to other, more labor-intensive buildings systems.

All our components are cut, welded, drilled, and marked at the factory for quick assembly at the job site.

Delivery is faster too—usually within six to seven weeks from order. That helps get your operation up and running as quickly as possible. In fact, some standard model metal warehouses can deliver in as little as four weeks.



KAFA Warehouse Buildings are Durable

All KAFA steel buildings are built strong to last long.Our warehouse structures retain their structural integrity, beauty, and value for many decades.



Clear Span Warehouses

Our rigid-frame steel framing is so strong that it spans huge areas without needing any interior support columns. Unobstructed space allows warehouse operations more flexibility and increases efficiency.



    Technical parameters:
Dimension Length x width x Eave height, roof slope
Type

Single slope, double slope, muti-slope;

Single span, double-span , multi-spans;

Single floor, double floors , multi-floors

Foundation Concrete and steel foundation bolts
Column and beam Hot rolled or welded H steel Q355B,  straight cross-section or Variable cross-section
Bracing X or V or other type bracing made from angle steel or steel bar
C or Z purlin C/Z section steel with size C160-300 or Z160-300
Roof and wall panel

Single colorful corrugated steel sheet;

sandwich panel with insulation of EPS, Rock wool, glass wool or PU

Accessories Semi-transparent skylight belts, Ventilators, down pipe, gutter,doors,windows, etc
Surface treatment Painting or hot dip galvanized



KAFA warehouses economical designs can clear span up to 30m in width or more. Widths up to 150m are possible with a load-bearing column in the center of the building.



Any length is possible with KAFA metal warehouses.



Building heights up to 6m are standard. In addition, even taller warehouse structures are available with a custom quote.

If desired,KAFA warehouses may also include optional mezzanine floor systems.



Order KAFA warehouse buildings with extra loads for sprinkler systems, ceiling cranes, or any other specialized needs.



We offer a full range of exterior options, with colorful, durable steel wall and roof panels. Exteriors can also be finished with brick, stone, tilt-up concrete, glass, stucco or any other facade of your choice.And other options available on our metal warehouses, including skylights and overhead doors.



Whether you need modest 500 sqm storage facilities, or 5,000 sqm industrial warehouses, or 500,000 sqm online fulfillment centers, KAFA is the best supplier for your material handling operation.



Our experienced technical advisors will help create the ideal warehouse building for your specific business needs.



Contact KAFA team for a free consultation or advise on a new warehouse or another steel building project.

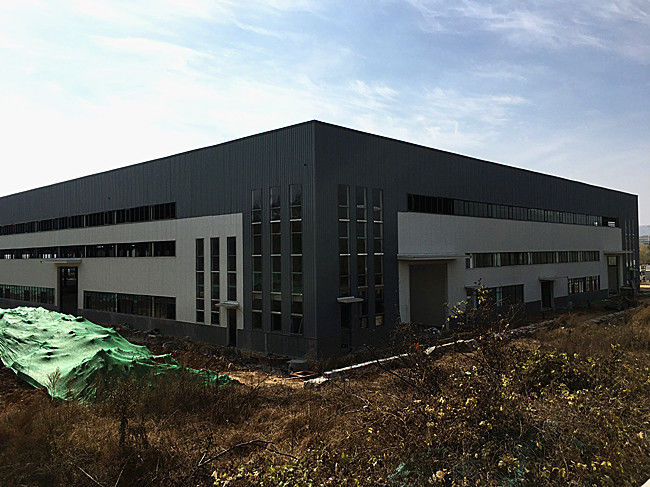

Customizable Designed Portal Frame Prefab Warehouse Building Construction 2
