Product Details:
|
| Material: | Welded H Beam, Hot Rolled H Beam, C/Z Purlin | Surface Treatment: | Zinc Rich Primer 90um |
|---|---|---|---|
| Wall: | Waved 0.5 Aluminum Sheet +100mm Glass Wool | Roof: | 0.5mm Steel Color Sheet +100mm Glass Wool |
| Door: | Roller Shutter Automatic Door | Window: | Aluminum Alloy |
| Wind Load: | 150KM/h | Application: | Workshop |
| Corlor: | Grey | Grade: | Q235B Q345B |
| High Light: | structural steel workshop,prefab steel workshop |
||

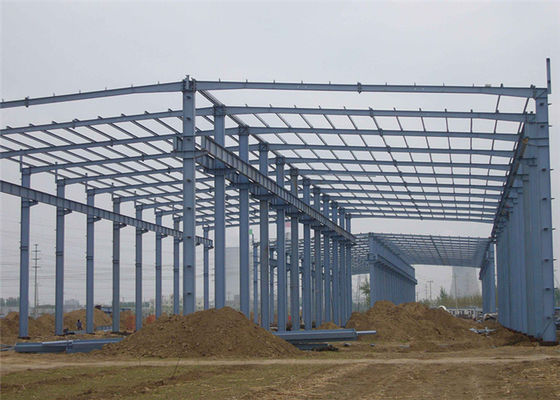

Mould proof fast build low cost large span metal structure steel workshop
| Name | Steel structure factory | ||
| 1.Convenient to assemble and disassemble | ||
| 2.Durable structure | |||
| 3.Almost dry construction which is environmental friendly | |||
| 4.Light and reliable, the steel structure is strong and firm | |||
| 5.Easy to incise and weld, fast construction, less spot influence. | |||
| 6.Practical, good space utilization and high price performance | |||
| 7.Satisfy various demands of great span, multi level, high load support | |||
| Specifications | |||
| a | Size: MOQ is 1000m2, width X length X eave height, roof slope | ||
| b | Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors | ||
| c | Base: Cement and steel foundation bolts | ||
| d | Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable Cross-section! | ||
| e | Bracing: X or V or other type bracing made from angle, round pipe, etc | ||
| f | C or z purlin: Size from C120~C320, Z100~Z200 | ||
| g | Roof and wall panel: Single colorful corrugated steel sheet (0.326~0.8mm) thick, (840mm wide), | ||
| h | Accessories: Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc | ||
| i | Surface: Paint or hot dip galvanize! | ||
| j | Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ | ||
Building Parameter:
| structure | Steel welded h section |
| Purlin | C section channel or z section channel |
| Roof cladding | Sandwich panel or corrugated steel sheet with fiber glass wool coil |
| Wall cladding | Sandwich panel or corrugated steel sheet |
| Tie rod | Circular steel tube |
| Brace | Round bar |
| Column & transverse brace | Angle steel or h section steel or steel pipe |
| Knee brace | Angle steel |
| Roof gutter | Color steel sheet |
| Rainspout | PVC pipe |
| Door | Sliding sandwich panel door or metal door |
| Windows | PVC/plastic steel/aluminum alloy window |
| Connecting | High strength bolts |
| Packing | Decided by you , loaded into 1X 40FT gp/ot ,1X20 FT gp,1X40 FT hq |
| Drawing | We can make the design and quotation according to your require or your drawing |
Connection Method
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
Construction Advantage
Installation:
There are 3 options of installation as following:
1. Clients install it by themselves according our drawings and simple video.
2. Our engineer to help on construction site.
3. We provide installation team to help.
