|Material:||Hot Rolled/weld H Beam||Surface:||Galvanized, Painting|
|Dimension:||As Per Requirement||Corlor:||Red, Sea Blue, White Grey, Etc.|
|Sand Blasting:||Sa 2.5||Life Time:||50 Years|
lightweight steel frame construction,
structural steel frame construction

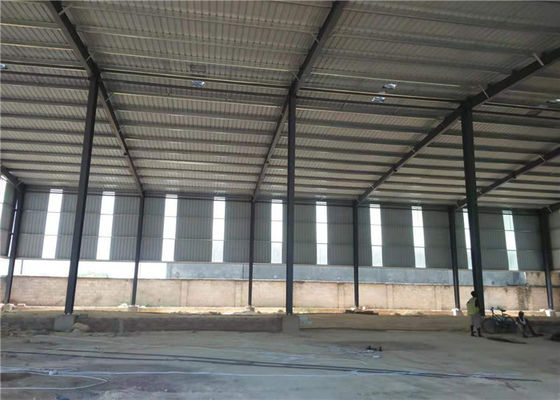

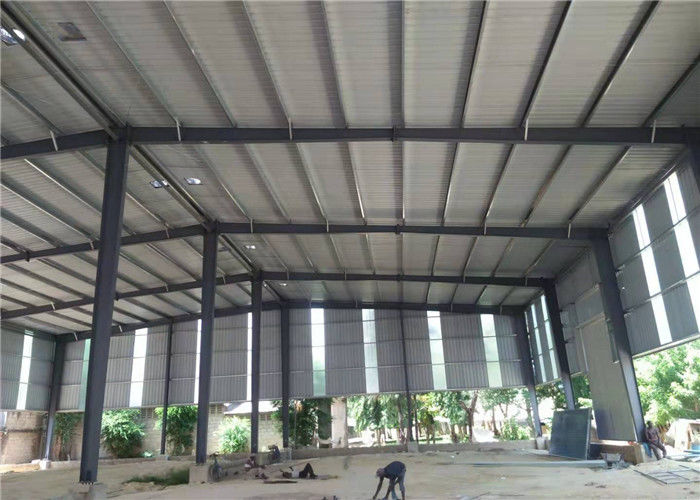

|Name||Steel structure warehouse|
web plate: 6-32mm
wing plate: 6-40mm
|color||according to customers|
|size||MOQ is300m2,wideth*length*eave height|
1. low cost but beautiful out look
2. high savety performance
3. easy to assemble and dismantle
4.manufacture under under complete quality control system ISO9001
5. Installation with instruction of experiance engineers.
|base||cement and steel foundation bolts|
|Main frame||H beam|
|Material||Q235B, Q345B or others as customer's request|
|Purlin||C or Z purlin,size from C120-C320,Z100-Z20|
|bracing||X-type or other type bracing made from angle,round pipe.|
|bolt||plain bolt and high strength bolt|
|Roof&wall||sandwich panel and color plate|
|door||sliding or rolling door|
|Window||Aluminium alloy window|
|surface||two ways of anti-rust painting or hot dip galvanized|
|components||sheet||0.5mm or 0.6mm galvanized sheet|
|Accessories||semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.|
2. steel web frame structure
3. steel H-colum and sheet H-beam
4. Portal frame products
5. high rise building project
6. other steel structure buildings.
|Packing||Main sheet frame without packing load in 40'OT|
|Drawing||according to drawings or according to customer's requirements.|
If you need design for you, please supply us the following phareters and other detailed size:
1) length,wideth,height,eave height,roof pitch etc.
2) wind load,snow load,raining condition,aseismatic requirments,etc.
3) demand for doors and windows.
4) other information if necessory
|structure||Steel welded h section|
|Purlin||C section channel or z section channel|
|Roof cladding||Sandwich panel or corrugated steel sheet with fiber glass wool coil|
|Wall cladding||Sandwich panel or corrugated steel sheet|
|Tie rod||Circular steel tube|
|Column & transverse brace||Angle steel or h section steel or steel pipe|
|Knee brace||Angle steel|
|Roof gutter||Color steel sheet|
|Door||Sliding sandwich panel door or metal door|
|Windows||PVC/plastic steel/aluminum alloy window|
|Connecting||High strength bolts|
|Packing||Decided by you , loaded into 1X 40FT gp/ot ,1X20 FT gp,1X40 FT hq|
|Drawing||We can make the design and quotation according to your require or your drawing|
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
There are 3 options of installation as following:
1. Clients install it by themselves according our drawings and simple video.
2. Our engineer to help on construction site.
3. We provide installation team to help.
