|Material:||Welded H Beam, Hot Rolled H Beam, C/Z Purlin||Surface Treatment:||Sand Blast + Paint/galvanized|
|Structure:||Portal Structure+mezzanine||Wall:||0.5 Mm Steel Color Sheet Or Sandwich Panel|
|Roof:||0.5mm Steel Color Sheet+ Glass Wool Or Sandwich Panel||Life Time:||50 Years|
|Door:||Sliding Door Or Roller Door||Window:||Aluminum Alloy Window/ PVC|
prefab steel warehouse,
metal frame warehouse

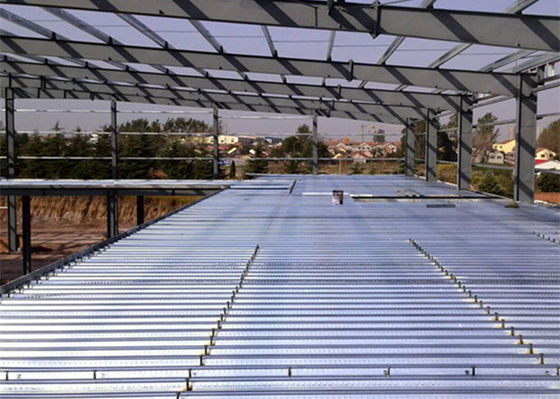

GB Standard prefab storage shed with mezzanine steel structure warehouse
web plate: 6-32mm
wing plate: 6-40mm
|color||according to customers|
|size||MOQ is300m2,wideth*length*eave height|
1. low cost but beautiful out look
2. high savety performance
3. easy to assemble and dismantle
4.manufacture under under complete quality control system ISO9001
5. Installation with instruction of experiance engineers.
|base||cement and steel foundation bolts|
|Main frame||H beam|
|Material||Q235B, Q345B or others as customer's request|
|Purlin||C or Z purlin,size from C120-C320,Z100-Z20|
|bracing||X-type or other type bracing made from angle,round pipe.|
|bolt||plain bolt and high strength bolt|
|Roof&wall||sandwich panel and color plate|
|door||sliding or rolling door|
|Window||Aluminium alloy window|
|surface||two ways of anti-rust painting or hot dip galvanized|
|components||sheet||0.5mm or 0.6mm galvanized sheet|
|Accessories||semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.|
2. steel web frame structure
3. steel H-colum and sheet H-beam
4. Portal frame products
5. high rise building project
6. other steel structure buildings.
|Packing||Main sheet frame without packing load in 40'OT|
|Drawing||according to drawings or according to customer's requirements.|
If you need design for you, please supply us the following phareters and other detailed size:
1) length,wideth,height,eave height,roof pitch etc.
2) wind load,snow load,raining condition,aseismatic requirments,etc.
3) demand for doors and windows.
4) other information if necessory
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
There are 3 options of installation as following:
1. Clients install it by themselves according our drawings and simple video.
2. Our engineer to help on construction site.
3. We provide installation team to help.
