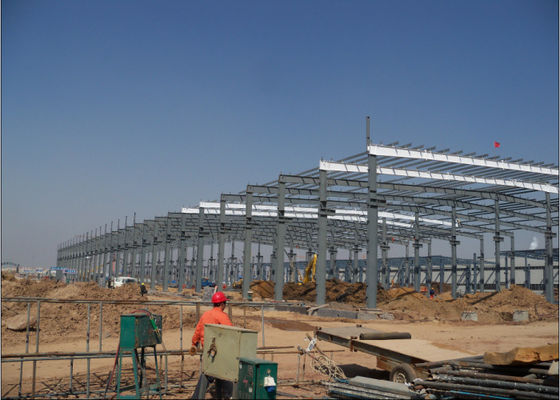

Customized Design Frame Structure Building Construction Portal Frame

Customized Design Frame Structure Building Construction Portal Frame
Customized Design Frame Structure Building Construction Portal Frame Customized Design Frame Structure Building Construction Portal Frame Customized Design Frame Structure Building Construction Portal Frame Customized Design Frame Structure Building Construction Portal Frame

Large Image :  Customized Design Frame Structure Building Construction Portal Frame

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO9000
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: 45~60usd/sqm
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

Customized Design Frame Structure Building Construction Portal Frame

Description
Material: Welded H Beam, Hot Rolled H Beam, C/Z Purlin Surface Treatment: Alkyd Primer 80um
Wall: 0.5mm Steel Corlor Sheet +100mm Glass Wool+0.4mm Steel Corlor Sheet Roof: 0.5mm Steel Color Sheet +100mm Glass Wool
Dimension: 80*50*11m(length*width* Height) Door: Roller Shutter Door
Window: UPVC Crane Capacity: 5 Tons*4pcs
Wind Load: 150KM/h Ventilator: Fans
High Light:

lightweight steel frame construction

,

prefabricated steel construction

Customized design portal frame high strength steel structure construction



Project name:  Hevst  industrial steel structure workshop

Dimension:  80*50*11m(length*width*height)

Wall: 0.5mm steel corlor sheet +100mm glass wool+0.4mm steel corlor sheet

Roof: 0.5mm steel corlor sheet+100mm glass wool

Ventilator: Fans without power

Total weight: 104Tons

Total value: 212,000usd



Customized Design Frame Structure Building Construction Portal Frame 0



Technical Parameters:
1. Main Steel Structure: Use build-up steel column, welded H-beam steel
2. Purlin: C-type steel
3. Roof panel: Single steel sheet or sandwich panel
4. Wall panel: The same to roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window



Specification

Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature.-50°C~+50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
