Product Details:
|
| Material: | Hot Rolled H Beam, Steel Plate, Angle Steel Etc. | Grade: | Q345B&Q235B |
|---|---|---|---|
| Paint: | Alkyd Primer, DFT 90um | Blasting: | Sa. 2.5 |
| Wall: | Color Steel Sheet+insulation | Roof: | Color Steel Sheet+insulation |
| Earthquake Resistant: | 8.0 | Drainage System: | Outer&inner Gutter With Down Pipe |
| Highlight: | steel building workshop,structural steel workshop |
||

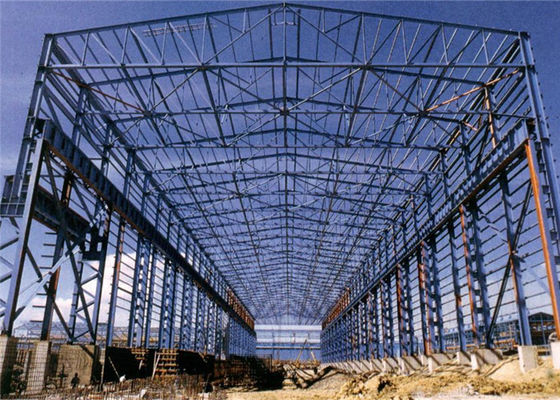

Fabricate design and export to Philippines metal frame steel structure workshop
| Name | Steel structure warehouse/workshop | |
| Dimension | Length | H beam:400-1500mm |
| Thickness |
web plate: 6-32mm wing plate: 6-40mm |
|
| Height | 200-1200mm | |
| color | according to customers | |
| size | MOQ is300m2,wideth*length*eave height | |
| Advantage |
1. low cost but beautiful out look 2. high savety performance 3. easy to assemble and dismantle 4.manufacture under under complete quality control system ISO9001 5. Installation with instruction of experiance engineers. 6. Non-pollution |
|
Main components |
base | cement and steel foundation bolts |
| Main frame | H beam | |
| Material | Q235B, Q345B or others as customer's request | |
| Purlin | C or Z purlin,size from C120-C320,Z100-Z20 | |
| bracing | X-type or other type bracing made from angle,round pipe. | |
| bolt | plain bolt and high strength bolt | |
| Roof&wall | sandwich panel and color plate | |
| door | sliding or rolling door | |
| Window | Aluminium alloy window | |
| surface | two ways of anti-rust painting or hot dip galvanized |
| components | sheet | 0.5mm or 0.6mm galvanized sheet |
| Accessories | semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc. |
| Usages |
1.worshop,warehouse,plants. 2. steel web frame structure 3. steel H-colum and sheet H-beam 4. Portal frame products 5. high rise building project 6. other steel structure buildings. |
| Packing | Main sheet frame without packing load in 40'OT |
| Drawing | according to drawings or according to customer's requirements. |
| Design |
If you need design for you, please supply us the following phareters and other detailed size: 1) length,wideth,height,eave height,roof pitch etc. 2) wind load,snow load,raining condition,aseismatic requirments,etc. 3) demand for doors and windows. 4) other information if necessory |
Main parts of the steel structures and technical parameters:
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
FAQ:
F: Common type of the industrial building?
A: Portal frame is the usual type in the industrial workshop and warehouse shed. Other types also could be designed and manufacturer as per clients' request.
F: What's the quality grade of the steel structure components?
A: Q345 is used for main steel structure, Q235 is used for secondary steel structure.
F: How about the delivery time?
A: Usually,within 25-30 days after the order confirmed, also depends on the fabrication quantity.
F: How about the derust grade?
A: Ball blasting Sa2.5 on main steel structure;
manual derust St2.0 on secondary steel structure.
F: What is kind panel used for the roof and wall?
A: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel performs well on the heat insulation,sound insulation.Common sandwich materials are EPS, glass wool and PU.
F: How to install it?
A: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if neede
F: Maintenance:
A: Finish paint need be done after the frame installed, and do it again after 6-8 months. So the surface will stay more time.
