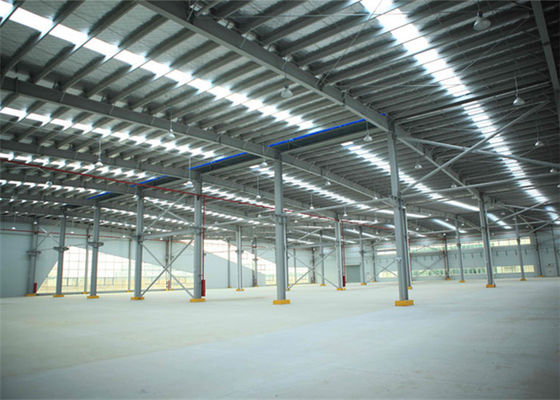

Industrial Steel Structure Workshop Drawing Construction For Producing

Industrial Steel Structure Workshop Drawing Construction For Producing
Industrial Steel Structure Workshop Drawing Construction For Producing Industrial Steel Structure Workshop Drawing Construction For Producing

Large Image :  Industrial Steel Structure Workshop Drawing Construction For Producing

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO9000
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: Negotiate
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

Industrial Steel Structure Workshop Drawing Construction For Producing

Description
Material: Welded H Beam, Hot Rolled H Beam, C/Z Purlin Surface Treatment: Zinc Rich Primer 90um
Wall: Waved 0.5 Aluminum Sheet +100mm Glass Wool Roof: 0.5mm Steel Color Sheet +100mm Glass Wool
Door: Roller Shutter Automatic Door Window: Aluminum Alloy
Wind Load: 150KM/h Application: Workshop
Corlor: Grey Grade: Q235B Q345B
High Light:

steel building workshop

,

structural steel workshop

Industrial Buildings Steel Structure Drawing Construction Workshop for Producing





Specification

Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel /Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature.-50°C~+50°C
Certification CE, SGS,ISO9001:2008,ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

Industrial Steel Structure Workshop Drawing Construction For Producing 0




Building Parameter:

structure Steel welded h section
Purlin C section channel or z section channel
Roof cladding Sandwich panel or corrugated steel sheet with fiber glass wool coil
Wall cladding Sandwich panel or corrugated steel sheet
Tie rod Circular steel tube
Brace Round bar
Column & transverse brace Angle steel or h section steel or steel pipe
Knee brace Angle steel
Roof gutter Color steel sheet
Rainspout PVC pipe
Door Sliding sandwich panel door or metal door
Windows PVC/plastic steel/aluminum alloy window
Connecting High strength bolts
Packing Decided by you , loaded into 1X 40FT gp/ot ,1X20 FT gp,1X40 FT hq
Drawing We can make the design and quotation according to your require or your drawing



Connection Method
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts

Construction Advantage

  • Could be designed according to different purpose and environment condition
  • Long life span, could be more than 50 years
  • Quick and easy install work and the more economic friendly
  • Could be moved and recycle
  • Strong seismic and wind resistance



Installation:

There are 3 options of installation as following:
1. Clients install it by themselves according our drawings and simple video.
2. Our engineer to help on construction site.
3. We provide installation team to help.
