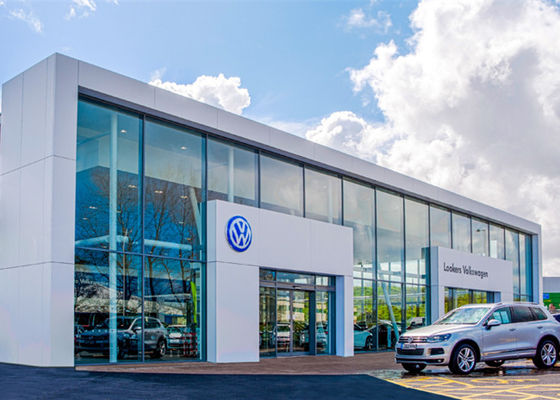

Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms

Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms
Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms

Large Image :  Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms

Product Details:
Place of Origin: China
Brand Name: KAFAFAB
Certification: BV,SGS
Model Number: Car showroom
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: Negotiate
Packaging Details: Nude pack or steel pallet
Supply Ability: 20000 square meter per month

Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms

Description
Material: H Beam. Round Pipe Round Bar Angle Steel Etc. Grade: Q345B&Q235B
Blasting: Sa. 2.5 Paint: Epoxy Rich Zinc, Epoxy Mio Barrior Middle Paint, DFT 125UM
Span: 36.6m Roof: Aluminum-plastic Panel L75, 0.6MM
Wall: Glass Curtain Earthquake Resistant: 8.0 Grade
High Light:

car showroom architecture

,

car dealer showroom

Fast construction building steel structure showroom/4s car shop



Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms  0



Technical Parameters



Items Specification
Main Steel Frame Column Q235B, Q345B Welded H Section Steel
Beam Q235B, Q345B Welded H Section Steel
Secondary Frame Purlin Q235B C and Z purlin
Knee brace Q235B Angle Steel
Tie Rod Q235B Circular Steel Pipe
Brace Q235B Round Bar
Vertical and Horizontal Support Q235B Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sq.m (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Zinc rich epoxy painting, one primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.



Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms  1Galvanized Steel Multi Car Showroom , 36.6m Span Large Car Showrooms  2



Steel structure frame



1.Main frame



Column and beam---Q235/Q345 steel with high strength and stiffness,high weight

bearing



2.Secondary frame



C steel,Z steel , square tube , steel angle ,tie bar,tendsion rod and bracing.



3.Doors and windows



Sandwich panel doors,roller doors.PVC window,aluminum alloy window



4.Roof and wall materials



Semi-transparent skylight belts, Ventilators, down pipe etc Corrugated sheets,

sandwich panel (EPS,ROCK WOLL,GLASS WOOL)



5.Accessories



Semi-transparent skylight belts, Ventilators, down pipe,gutter,etc



6.Connections



Anchor,high strength/ordinary bolts,steel plate



Why us ?



Quality control system


· Purchase material from famous steel manufacturer, supply traceable mill certificate.
· Before we use the material, we will make a third-party inspection,
· During fabricating, we have 5 QC to inspect every piece member.
· Before we load the steel into the container, we will arrange all the managers to check the steel member.
· Project Supervisor from customer will be welcomed during our fabrication.
· Pre-assembly will be available to check the quality and connection.


Technology service


Help customer to replace the foreign material by chinese material , Modify the shop drawings by chinese material ( but need your qualified engineer check and confirm)


· Modify and optimise shop drawings to save time and money.
· Help you quote your project by free
· Answer your other technology questiones


Loading management


· Before loading we will arrange all the managers to check the goods ( quality and quantity).
· We will make the loading container list before our loading
· We have one manager to check the quantity during our loading containers
· Tie up all the member in case the damage during the sea transportation



· After loading containers, Every steel member ( serial no. from your drawings) will be marked in the loading container list, then we will send to you, you could check the container list to find every member.



What we can do for you ?



1 supply you the high quality steel structure products with competitive price.



2 we can design as your detailed requests to ensure our product is only the best for you.



3 if you have drawings, we could help you modify and optimise it. that will make your design is cost- effective design. make it easy installation and save the material. also need to meet your requests. (that is our unique advantage)



4 we could supply the installation service. we can send our engineers to help you install the steel structure. and if neccessary we also could send workers to install it, but i do not think that is a good idea to make it cost-effective. O(∩_∩)O



5 make the tolerance of weight within 6%, (between construction drawings and actual weight).



Quality control



QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate

Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.

Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM

Pre-assembly testing the connection details.



At currently we have three types loading plan as below:



1 We use 4O"HQ container, This way we loading and unloading is very slow and diffcult. But this way is the lowest cost.



2 We use 40" OT container, we can load all members easily. and good way to protect the possible damage during shipping. But that will cost more ocea freight.



3 We still use 40" HQ, but we could make a steel pallet to put all members on it. And then we push it into the container, this way is the fastest way to loading and unloading, and we can make the pakage to project any damage during shipping. But the steel pallet will cost about 800 usd per pc.
