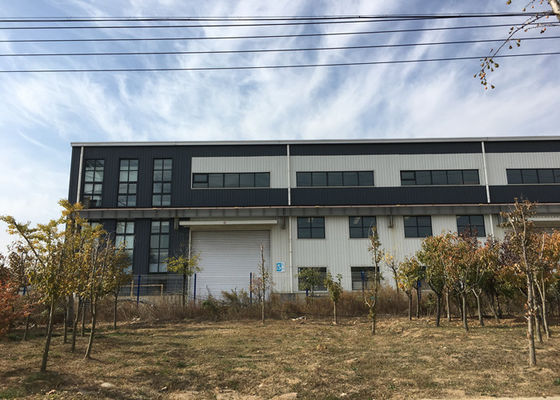

Multi-span huge steel structure workshop with mezzanine office room

Multi-span huge steel structure workshop with mezzanine office room
Multi-span huge steel structure workshop with mezzanine office room Multi-span huge steel structure workshop with mezzanine office room Multi-span huge steel structure workshop with mezzanine office room

Large Image :  Multi-span huge steel structure workshop with mezzanine office room

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFA
Certification: ISO BV
Model Number: Panel 01
Payment & Shipping Terms:
Minimum Order Quantity: 1000sqms
Price: Negotiate
Packaging Details: Nude pack
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000sqm/month

Multi-span huge steel structure workshop with mezzanine office room

Description
Material: Welded H Beam, Grade: Q235b,Q345b
Dimension: 200*160*11M Surface Treatment: Painting/galvanized
Sand Blast: Sa 2.5 Brand: KAFA
Application: Workshop,,office, Origin: Shandong,China(mainland)
High Light:

steel building workshop

,

prefab steel workshop

Multi-span huge steel structure workshop with mezzanine office room



Multi-span huge steel structure workshop with mezzanine office room 0
Product Description

Qingdao Huatuo steel structure workshop has features of high fire resistance, strong corrosion resistance. Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.



The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall.



The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.



ITEMS   SPECIFICATION
Main Steel Frame Colum Q235,Q345 Welded H Section Steel
Beam Q235,Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System Roof System Roof Panel (EPS/Fiber Glass Wool/Rock Wool/PU Sandwich Panel or Steel Sheet Cover) and Accessories
Wall System Wall Panel (Sandwich Panel or Corrugated Steel Sheet
Window System Aluminum Alloy Window/ PVC Window/Skylight
Door System Sliding Sandwich Panel Door/Rolling Metal Door/PVC Door
Others PVC Rainspout,Gutter etc
Wind Resisitance Grace 12 Grades
Earthquake-resistance 8 Grades
Structure life span Up to 50 years
Temperature Suitable temperature -50℃~+50℃
Certification CE, SGS, ISO9001:2015, ISO 14001:2015
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized.



Technical information of low cost prefabricated steel structure building:

Wind resistance: Grade 11(wind speed≤111.5km/h)

Earthquake resistance: Grade 7

Live load capacity of roofing: 0.5kn/m2

External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

Second floor load capacity: 150 kg/m2

Live load of corridor is 2.0kn/ m2





Characteristics

1. Different types and sizes according to customer’s demand: large or small, wide span, single span or multiple spans. The max span is 36m without middle column.

2. Low cost and maintenance advantages.

3. Fast construction and easy installation: time saving and labor saving, all the items are factory-made, pre-cut, pre-welded, pre-drilled, pre-painted.

4. Reduced construction waste, long using lifespan: up to 50 years.

5. Nice appearance.

6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.
