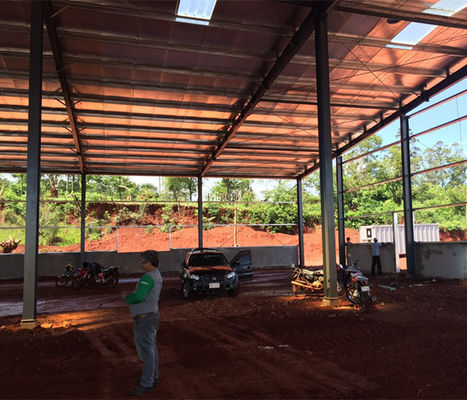

110mm Downpipe Prefabricated Steel Structure Warehouse

110mm Downpipe Prefabricated Steel Structure Warehouse
110mm Downpipe Prefabricated Steel Structure Warehouse 110mm Downpipe Prefabricated Steel Structure Warehouse

Large Image :  110mm Downpipe Prefabricated Steel Structure Warehouse

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFAFAB
Certification: ISO
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

110mm Downpipe Prefabricated Steel Structure Warehouse

Description
Material: Welded H Beam,angle Steel, C Purlin Surface Treatment: Alkyd Primer, DFT 80um
Structure: Portal Structure Frame Wall: 0.5mm Steel Corlor Sheet+100mm Glass Wool+0.5mm Steel Corlor Sheet
Roof: 0.5mm Steel Corlor Sheet+100mm Glass Wool Downpipe: 110mm Diameter
Life Time: 50 Years Dimension: 120*60*9M(Length*width*eave Height)
High Light:

Prefabricated Steel Structure Warehouse

,

110mm Steel Structure Warehouse

,

H Beam Prefab Steel Warehouse

Welded H-beam DFT 80um steel structure warehouse



Prefabricated steel structure warehouse introduction



The prefab warehouse is designed and manufactured in the factory: cutting, stamping, drilling, welding, and finally transport to the construction site. At the construction site, the components are bolted together to reduce costs and assembly time.



A warehouse is a place to store materials. Every manufacturer and enterprise has its own warehouse. Each logistics center has its own warehouse. Some of them have special needs, such as cold storage. Many places need warehouses, even in your home, there will be a small warehouse for storing unused items.



There are some differences between the prefabricated steel warehouse and the concrete warehouse building:



1. Construction time


Starting from the construction time, the steel structure warehouse has obvious advantages. The construction speed of the steel structure warehouse is very fast, because all the prefabricated parts are completed in the workshop and constructed on-site, and only hoisting and joints are required to meet the requirements. Emergency construction by some manufacturers


2. Environmental protection


After the prefabricated steel warehouse is transported to the construction site, the whole process will run without water, without sand and a large amount of dust, which can reduce environmental pollution and affect nearby residents, but concrete buildings are impossible.


3. Cost


Compared with concrete, steel structure is more cost-effective and labor-intensive. The construction cost of steel structure warehouse is 20% to 30% lower than that of traditional concrete buildings, and steel structure is more durable than concrete.


4. weight


The steel structure itself has the characteristics of light weight. Steel structure walls and roofs are made of light metal building materials, which are much lighter than brick walls and tiled roofs, which can reduce the overall weight of the warehouse without compromising the stability of the structure.





Items Specifications
Main Steel Frame Column Q235,Q345 Welded H Section Steel
Beam Q235,Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z Purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical & Horizontal support Q235 Angle Steel,Round Bar or Steel Pipe
Maintenance System Roof Panel

EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

Corrugated Steel Sheet

Wall Panel

EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

Corrugated Steel Sheet

Accessories Window Aluminum Window, Plastic Steel Window
Door Aluminum Door, Rolling Metal Door
Rainspout PVC
Fastener High Strengh Bolts,Normal Bolts,Chemical Bolts
Ventilation System Natural Ventilator,Ventilation Shutters
Live Load on Roof In 120kg Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-Resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature -50°C~+50°C
Certification CE, SGS,ISO9001:2008,ISO14001:2004
Finishing Options Vast array of colors and textures available



Features of steel structure workshop



1. High material strength and light weight



2. Steel toughness, good plasticity, uniform material, high structural reliability



3. High degree of mechanization of steel structure manufacturing and installation



4. Good sealing performance of steel structure



5. Steel structure is heat-resistant and not fire-resistant



6. Poor corrosion resistance of steel structure



7. Low carbon, energy saving, green and environmental protection, reusable



Production Process

1. Preparing Material⇒2. Cutting⇒3. Assembling⇒4. Automatic submerged arc welding⇒

5. Flange plate of straightening⇒6. Welding⇒7. Assembly dimensions inspecting⇒

8. nondestructive testing⇒9. shot blasting and descaling⇒10. Spray paint processing⇒

11. Measurement of coating thickness⇒12. Packaging⇒13. Delivery⇒Other: Secondary processing
