Product Details:
|
| Material: | Welded H Beam, Angle Steel Round Bar,pipe | Paint: | Alkyd Primer, DFT 80UM |
|---|---|---|---|
| Structure: | Gable Frame | Application: | Warehouse Frame |
| Grade: | Q235B Q345B | Purlin: | Cold Rolled Galvanized C/Z Purlin |
| Life Time: | Up To 50 Years | Color: | As Per Requirement |
| High Light: | Gable Frame Prefabricated Steel Structure,Z Purlin Prefabricated Steel Structure,Alkyd Painting Prefabricated Steel Structure |
||
Tolerance ±1% customized prefabricated light steel structure

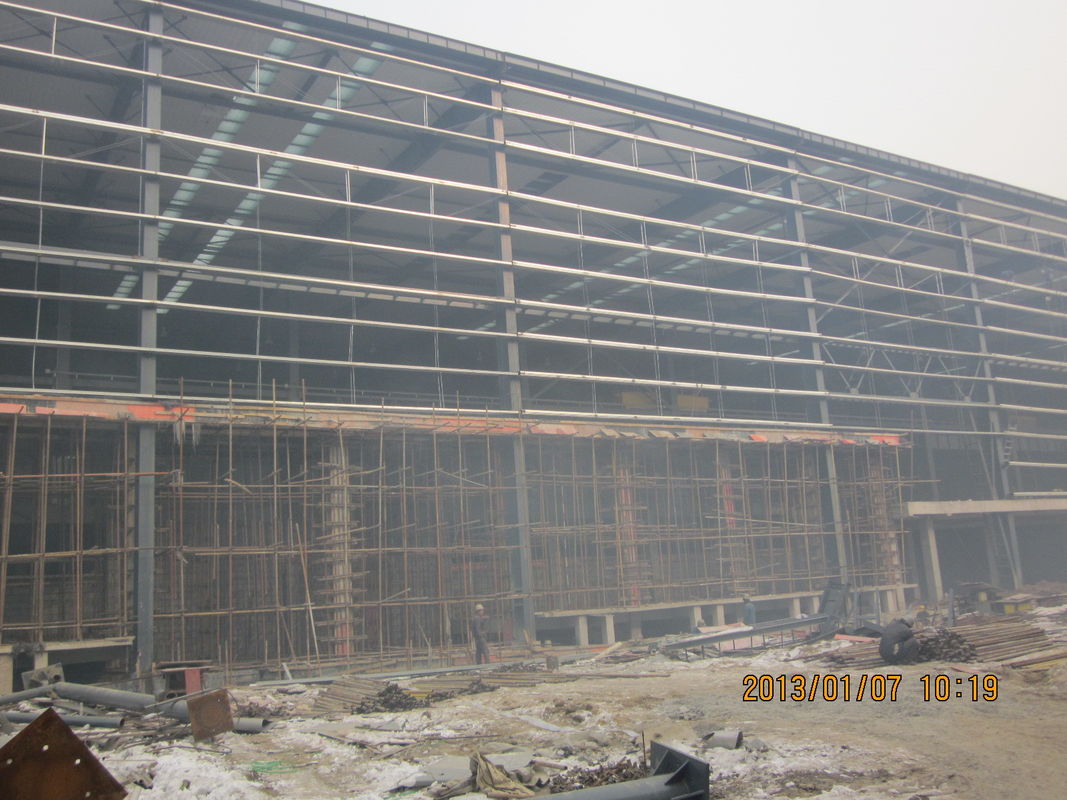

Prefabricated steel structure building
Our prefab steel structures have been pre-cut, pre-drilled and ready to be assembled quickly and efficiently. Steel structure buildings can be used in almost any building application: agriculture / warehouse / hangar / welding workshop / commercial center / garage / warehouse / suburban buildings / warehouse / workshop, etc.
2.Main parts of the steel structures and technical parameters:
|
Main Steel Frame System |
|
|
Main structure |
H section steel Q345, alkyd painting, two primary painting, two finish painting. |
|
Roof purlin |
XZ160*60*20*2.5, galvanized |
|
Wall purlin |
XZ160*60*20*2.5, galvanized |
|
Intensive bolt |
Grade 10.9 |
|
Turn buckle bolt |
M20+2, steel Q235, processing |
|
Anchor bolt |
M24, steel Q235, processing |
|
Ordinary bolt |
Galvanized bolt M20 |
|
Ordinary bolt |
Galvanized bolt M12 |
|
Brace nut |
Galvanized bolt M12 |
|
Bracing System |
|
|
Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
|
Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
|
Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
|
Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
|
Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
|
Wall & Roof System |
|
|
Roof panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
|
Wall panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
|
Edge cover |
0.4mm color plate, angle Alu. |
|
Fittings & accessories |
Nails, glue etc. |
|
Unpowered ventilator |
Diameter Φ600, stainless steel |
|
Sky lighting band |
1.2mm FRP, double layer |
|
Sliding door |
sandwich panel door |
|
Roof drainage system |
|
|
Gutter |
0.5mm color steel plate |
|
Rainspout pipes |
Φ110 PVC pipe |
Features: eye-catching design-the whole house looks beautiful and elegant.
Easy to assemble and disassemble: the house can be rebuilt dozens of times. Assembling requires only simple tools: plugs and screws.
Strong structure-the house adopts steel frame structure and sandwich panel.
Our house is completely waterproof.
This house can be customized. The roof, walls, doors, windows can be selected by the customer. Durable-steel frame parts are treated with anti-corrosion coating, which can be used for up to 50 years.
Steel structure
Steel structure building warehouse/workshop is a new type of light steel structure building system.
The main steel frame of H-shaped steel, Z-shaped steel and U-shaped steel, using various panels and
The main steel frame composed of roof and walls of other components is formed as windows, doors and cranes.
Steel structure characteristics
1. Lightweight, more resistant to earthquakes and strong winds.
2. Due to low maintenance costs and the best quality materials such as galvanized steel, sustainability and life cycle costs are lower.
3. With the help of modular and error-free prefabrication of building components, shorten the construction period.
4. Because of the reusable steel parts, and reducing waste by effectively using materials in the factory, it is environmentally friendly.
5. Function: Repositionable, replaceable and load-bearing wall and the function provided by effective use of space.
