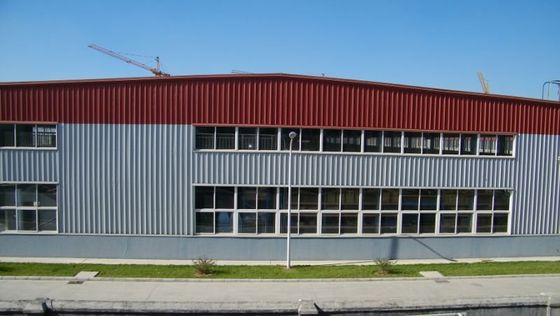

PVC Window Corrugated Steel Plate Q235 Modern Steel Construction

PVC Window Corrugated Steel Plate Q235 Modern Steel Construction
PVC Window Corrugated Steel Plate Q235 Modern Steel Construction PVC Window Corrugated Steel Plate Q235 Modern Steel Construction

Large Image :  PVC Window Corrugated Steel Plate Q235 Modern Steel Construction

Product Details:
Place of Origin: Qingdao, China
Brand Name: KAFAFAB
Certification: ISO 9001
Model Number: Steel structure warehouse
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: USD 45~60/sqm
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 days after deposit and shop drawing confirmed
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month

PVC Window Corrugated Steel Plate Q235 Modern Steel Construction

Description
Material: Welded H Beam Surface Treatment: Alkyd Primer, DFT 80um
Structure: Portal Structure Frame Wall: EPS 50MM
Roof: EPS 50MM Downpipe: 110mm Diameter, PVC
Life Time: 50 Years Dimension: 80*60M*80(Length*width*eave Height)
Door: Sliding Door Window: PVC
Cannopy: Frame+double Sheet, 3.2m Length Brick Wall: 1.2m Height
High Light:

Q235 Modern Steel Construction

,

36m Modern Steel Construction

,

PVC Window Steel Warehouse Construction

Low Cost Prefabricated Steel Structure Warehouse



The advantages of prefabricated steel warehouses over concrete and wood



Prefabricated steel structures used in warehouses are usually composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plates. Each part is connected by welding, bolts or rivets. But why choose a prefabricated steel structure warehouse?

The main function of a steel warehouse is to store goods, so sufficient space is one of the characteristics of the warehouse. The steel structure warehouse combines this function. The steel structure warehouse has a large span and a large utilization area.

Compared with other types of buildings with the same strength, steel structure buildings are lighter and lighter. In addition, large warehouses require large spans, and steel structures are most suitable for large-span buildings such as factories and stadiums.
Moreover, the need for warehouse construction is even more urgent.



>> Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.4mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.8mm color steel plate
Rainspout pipes Φ160 PVC pipe




Details of prefabricated steel structure warehouse:



Construction area:
The length, width and height required for steel warehouse construction.
Usually, the construction area occupies about 70% of the land. For example, if your land area is 5000 square meters, the building area is about 3500 square meters, including warehouses, office buildings, etc.
The floor area required by each country/region is different. Please refer to local building codes for details.



Crane runway system:


Do you need to install a bridge crane in a warehouse?
If a crane is required, please consider the height of the warehouse according to the specific lifting height.



Environmental conditions:


How is the local weather? Are there strong winds and snow in winter?

We need to calculate the wind load and snow load of the building to ensure the safety of the building, so you need to provide the local wind speed km/h or m/s. If there is snow in winter, please inform the thickness or weight of the snow.



Insulation Materials:


If the warehouse needs to be insulated, insulation cotton needs to be laid on the walls and roof. We can provide glass wool or rock wool.



Doors and windows:


Does the warehouse need doors and windows?
We can provide aluminum windows.
We provide doors, rolling doors, sliding doors and artificial doors upon request.



Parameters of single-storey warehouse:


Length: depends on your requirements.
Column spacing: generally 6m. According to your requirements, it can also be 7.5 meters, 9 meters or 12 meters.
Span: usually 9-36 meters. We can design it as a single span, double span or multiple spans.
Height: 4.5-9 meters (no bridge crane is installed in the warehouse)
When you need to install one or more bridge cranes in a factory, you should specify the lifting capacity and height of the crane to determine the height of the warehouse.
