Industrial Design Portal Frame Prefabricated Steel Structure Factory Building

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building
Industrial Design Portal Frame Prefabricated Steel Structure Factory Building Industrial Design Portal Frame Prefabricated Steel Structure Factory Building Industrial Design Portal Frame Prefabricated Steel Structure Factory Building

Large Image :  Industrial Design Portal Frame Prefabricated Steel Structure Factory Building

Product Details:
Place of Origin: Shandong, China
Brand Name: KAFA
Certification: ISO9001:2015 , ISO14001:2015
Model Number: KAFA-2024029
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Price: USD40-60 / sqm
Packaging Details: Nude pack or steel pallet
Delivery Time: 40 working days after deposit and shop drawing confirmedd
Payment Terms: L/C, T/T
Supply Ability: 20 000 square meter per month

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building

Description
Material: H Beam. Round Pipe Round Bar Angle Steel Etc. Grade: Q355B&Q235B
Welding Type: SAW, MIG Blasting: Sa 2.5, St 2.0
Paint: Epoxy Rich Zinc, Epoxy Mio Barrior Middle Paint, DFT 125UM Roof: Corrugated Steel Sheet , Sandwich Panel
Wall: Corrugated Steel Sheet , Sandwich Panel
High Light:

Industrial Portal Frame Prefabricated Steel Building

,

Steel Structure Factory Building

,

Prefabricated Steel Structure Factory Building



Industrial Design Portal Frame Prefabricated Steel Structure Factory Building



The Industrial Design Portal Frame Prefabricated Steel Structure Factory Building is made of steel structures, including internal support and external enclosure structure. The steel frame is made of a portal steel frame, including steel columns, steel beams, and bracing. The portal steel frame and the external enclosure structure constitute an enclosed building structure with sufficient strength to withstand severe weather such as strong wind, rain, and snow.

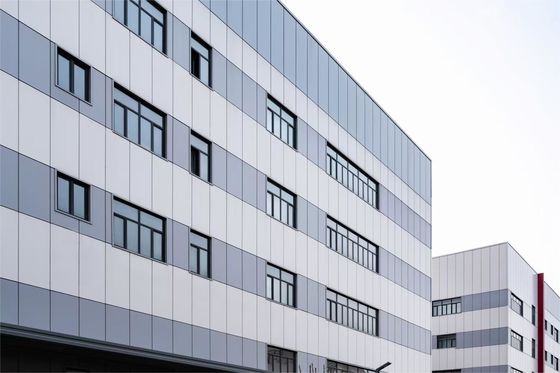

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 0

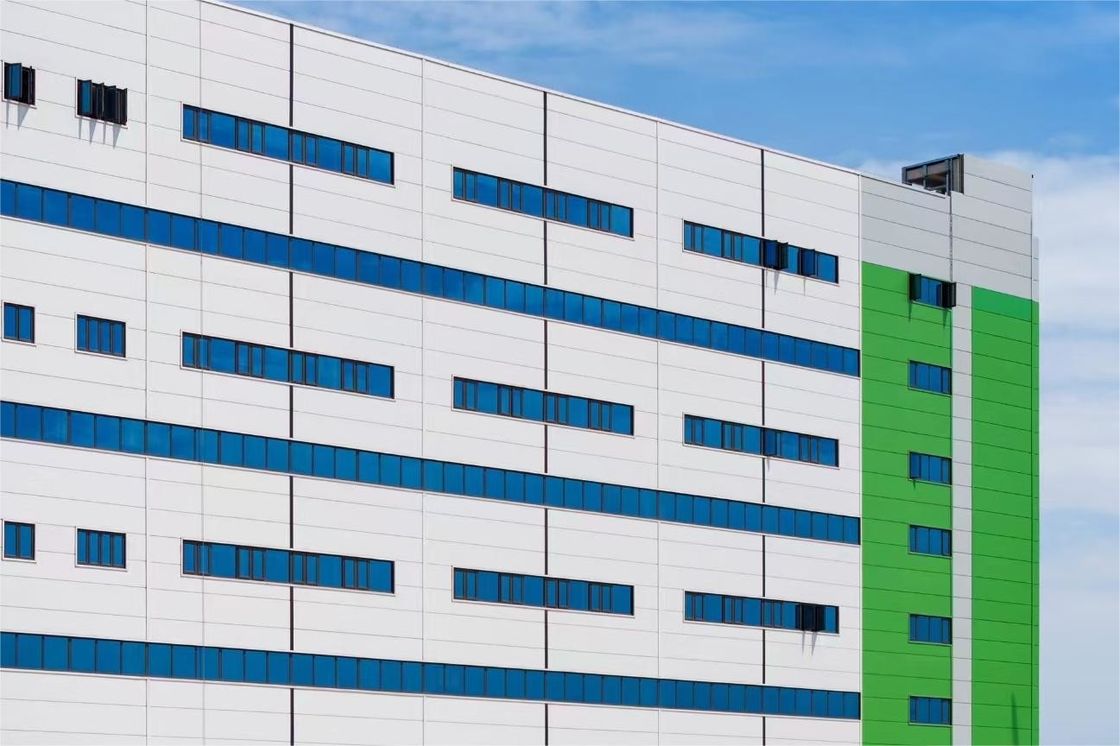

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 1



Prefabricated steel structure factory building:



Metal structures processed the cut, welded, drilled, and painted in the workshop, and then transported to the construction site, often referred to as prefabricated structures. The prefabricated steel structure does not need to be welded on-site, and each component only need to be fixed with bolts, which is convenient and quick to install and save labor. Five main types of structural components make up the steel frame-tension members, compression members, bending members, combined stress members, and their connections.

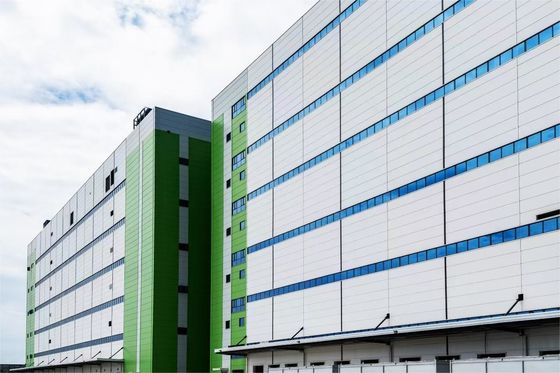

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 2



Technical parameters:



1) Column and Roof Beam: Q355B welded H section Beam
2) Crane Beam: Q355B welded H section Beam with a vertical stiffening rib
3) Roof Horizontal Bracing: Q235B Steel Rod
4) Column X Cross Bracing: Q235B angle steel or steel rod
5) Roof Purlin: Q235B Galvanized Z section steel
6) Wall Girt: Q235B Galvanized C section steel
7) Sag rod: Q235B Galvanized steel rod
8) Roof Cladding: 0.5mm corrugated single color sheet with glass wool insulation
9) Wall Cladding: 0.5mm horizontal corrugated single color steel sheet



Wall and roof panel:



The roof panel is usually a single continuous length from the eaves to the ridge line for portal frame buildings.
Wall panels are usually the continuous length from the bottom wall to the eaves of the building.
It is usually a corrugated single-color metal sheet with a thickness of 0.5mm-0.8mm. For a factory building that requires thermal insulation, you can choose to use a sandwich panel.



Advantages of steel factory building:



  • Steel materials have many advantages over other building materials (such as wood)

  • The prefabricated steel structure is manufactured according to strict specifications and tolerances.

  • All materials are 100% recyclable.

  • The steel structure is not easy to warp, bend, twist, or bend, and is easy to modify and flexible in design.

  • Steel structure can improve building quality and reduce maintenance while providing higher safety and resistance.



Prefabricated Steel structure building VS Concrete Building:



  • Construction period
    In terms of the construction period, the steel structure has obvious advantages. The prefabricated steel structure building construction is speedy because its construction is produced in the factory on the construction site. Only hoisting and splicing can meet some manufacturers’ needs for emergency construction and warehouse construction.

  • Environmental protection
    After the steel components are processed and transported to the construction site, the components only need to be hoisted and welded. There is no water operation, no sand, and a large amount of dust generated during the whole process, which can reduce environmental pollution and impact nearby residents. However, the traditional concrete Buildings can’t do this, which means that steel structures have done a good job in environmental protection, the most important aspect of humanity. Besides, the recyclability of steel also conforms to the concept of sustainable development. In contrast to concrete buildings, after demolishing, there is a pile of construction waste.

  • Price
    Steel structure saves construction costs and labor costs more than concrete. The cost of building made of steel structure is 20% to 30% lower than that of traditional concrete buildings, and steel structure is stronger and more durable than concrete and has the superior seismic performance.

  • Structural weight
    The steel structure building itself has the characteristics of lightweight. The prefabricated steel structure warehouse walls and roof are made of light metal building materials, which are much lighter than the brick and concrete wall ceramic tile roof, which can reduce the warehouse’s overall weight and does not damage the stability of the structure.

  •

We fabricate kinds of sectional steel structures components, including but not limited:





Welded H section steel
Pipe column
BOX section steel
Steel reinforced concrete column
Lattice column
Pipe truss
H beam truss
Bridge
Special Shaped steel member





At KAFA, we believe that the quality of our work is a defining feature of our services. We are committed to providing exceptional quality products and a service which is reflective of our dedication to excellence at all stages of a project lifecycle. We deploy extensive quality control measures to safeguard the quality from beginning to end. This includes the inspections of all materials prior to, and following fabrication.



KAFA have highly trained and experienced professional fabrication and welding staff, and because of this, we are able to deliver a wide variety of fabrication services including a variety of steel sections, designed to meet your specific project requirements.



The fabrication procedure typically follows the below steps:



  • Measuring, cutting and welding the steel

  • Placing the holes and cleats in the correct position

  • Packaging and carefully loading in the right sequence

  • Dispatching to site and erecting if required.



Technical team:



Through years of accumulation and deploitation, we have formed a complete set of building system solution. KAFA's exceptionally talented engineering staff have earned a solid reputation. They are all qualified engineers, with structural expertise and extensive design experience. Our design engineers, skilled with advanced CAD and TEKLA software, will provide you with most dependable and economical building structure. Design considerations may include such factors as seismic, wind and soil bearing loads in relation to supporting structures and foundations. In other applications: corrosion allowances, specific gravity, slosh effect and equipment loads may need to be addressed. Whatever your concerns, we will analyze and design to your specific requirements and environments.



We believe technology makes a difference. By utilizing 3D detailing, Material Requirement Planning Software and CNC processing equipment, we are able to produce accurate drawings quickly, purchase material efficiently and process your job precisely.



A combination of in-house, domestic and foreign resources, techniques and technologies are utilised to meet our clients’ design requirements. With our experienced and well equipped estimating and project design team we ensure that anything is possible.



Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 3 Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 4

Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 5 Industrial Design Portal Frame Prefabricated Steel Structure Factory Building 6
